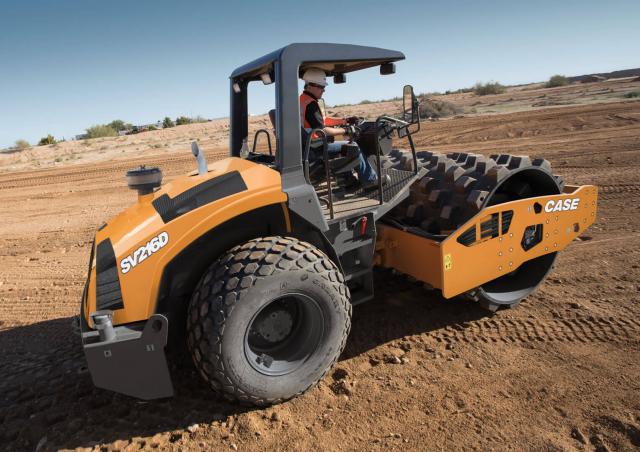

SV216D Case SV216D Specifications & Technical Data (2021—2026)
.jpg)
.jpg)
Technical specs - SV216D Case
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 14.35 t
- Transport length
- 6.14 m
- Transport width
- 2.26 m
- Transport height
- 3.05 m
- Travel speed
- 12.5 km/h
- Frequency
- 35 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.5 m
- Amplitude
- 2 mm
- Turning radius outside
- 6.1 m
- Turning radius inside
- 3.72 m
- Statical line load
- 48.8 kg/cm
- Centrifugal force
- 325 kN
- Model series
- D
- Engine manuf.
- Deutz
- Engine type
- TCD 4.1 L4
- Engine power
- 115 kW
- Revolutions at max torque
- 1600 rpm
- Max. torque
- 609 Nm
- Emission level
- Tier 4f
More technical details, like: vibration, drive, dimension lxwxh, displacement, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
