BW 222 D-5 Bomag BW 222 D-5 Specifications & Technical Data (2022—2026)

Weight: 22.1t – Transport length: 6.51m – Transport width: 2.3m – Transport height: 3.04m – Vibration: e – Drive: A

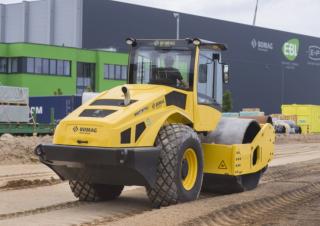

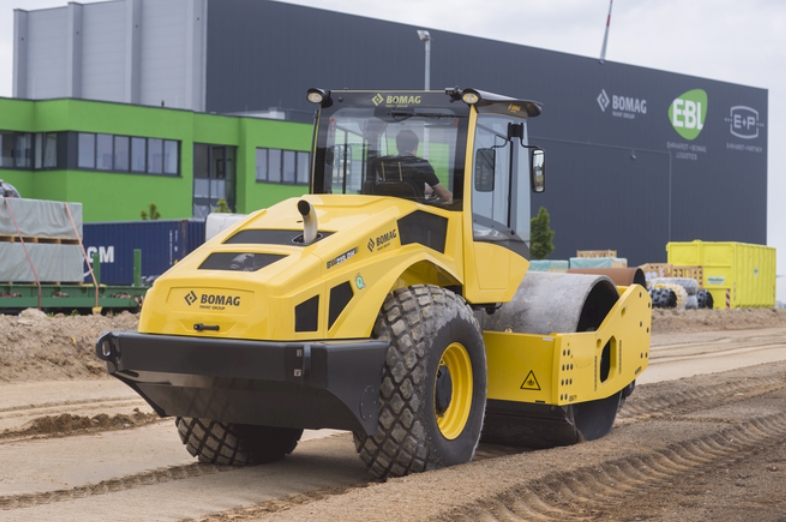

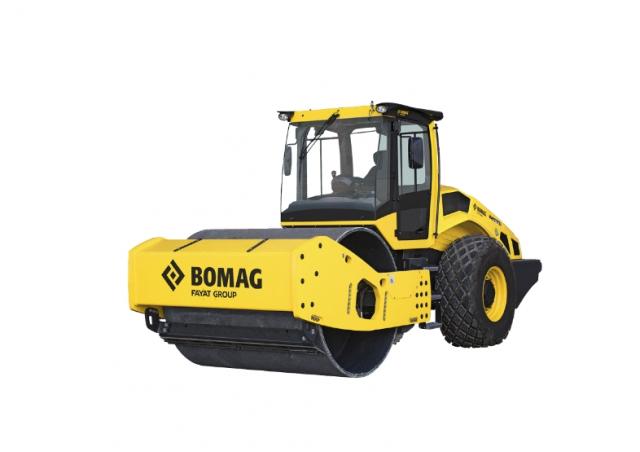

Rollers Single-drum Rollers Bomag BW 222 D-5
Rollers Single-drum Rollers Bomag BW 222 D-5
Rollers Single-drum Rollers Bomag BW 222 D-5
Rollers Single-drum Rollers Bomag BW 222 D-5
Rollers Single-drum Rollers Bomag BW 222 D-5
Rollers Single-drum Rollers Bomag BW 222 D-5

Visit Bomag live at

Technical specs - BW 222 D-5 Bomag

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.1 t
Transport length
6.51 m
Transport width
2.3 m
Transport height
3.04 m
Vibration
e
Drive
A
Travel speed
9 km/h
Frequency
31 Hz
Roller width
2.13 m
Statical line load
71.4 kg/cm
Centrifugal force
328 kN
Model series
BW
Engine manuf.
Deutz
Engine type
TCD 2012 L06
Engine power
150 kW
Revolutions at max torque
2200 rpm
Cylinder bore x stroke
6 mm
Emission level
Stage IIIa / TIER3

More technical details, like: rollers Ø, amplitude, turning radius outside, turning radius inside, dimension lxwxh, displacement, max. torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Sheep foot
No
Oscillation
No
Compression control
No
Aircondition
No

Download datasheets (PDF)

Bomag BW 222 D-5 FAQ

When was the Bomag BW 222 D-5 manufactured?

The Bomag BW 222 D-5 was first produced in 2022.

How much does the Bomag BW 222 D-5 weigh?

The Bomag BW 222 D-5 weighs 22.1 tons.

What are the transport dimensions of the Bomag BW 222 D-5?

The Bomag BW 222 D-5 has a transport length of 6.51 meters, a transport width of 2.3 meters, and a transport height of 3.04 meters.

What is the travel speed of the Bomag BW 222 D-5?

The Bomag BW 222 D-5 has a travel speed of 9 km/h.

What type of undercarriage drive does the Bomag BW 222 D-5 have?

The Bomag BW 222 D-5 has an all-wheel drive undercarriage.

What are the compaction capabilities of the Bomag BW 222 D-5?

The Bomag BW 222 D-5 features a single vibration system, operates at a frequency of 31 Hz, generates a centrifugal force of 328 kN, and has a statical line load of 71.4 kg/cm.

What is the roller width of the Bomag BW 222 D-5?

The roller width of the Bomag BW 222 D-5 is 2.13 meters.

How much is a Bomag BW 222 D-5 Single-drum Roller (2022u20132025) worth?

The residual value of the Bomag BW 222 D-5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
