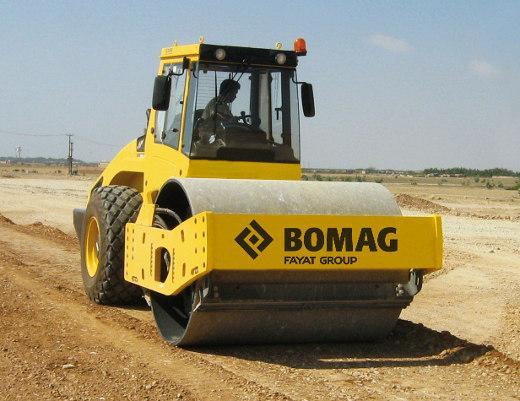

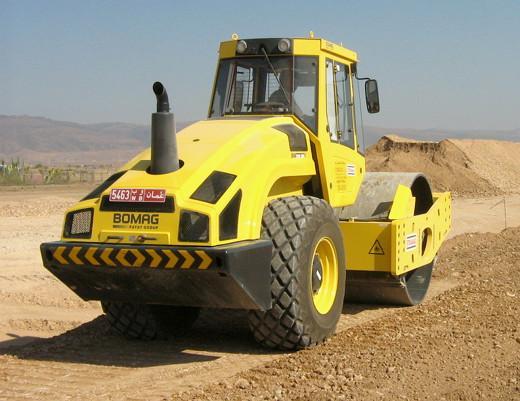

BW 219 DH-4 Bomag BW 219 DH-4 Specifications & Technical Data (2006—2016)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Bomag live at
Technical specs - BW 219 DH-4 Bomag
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 19.2 t
- Transport length
- 6 m
- Transport width
- 2.3 m
- Transport height
- 3.02 m
- Vibration
- e
- Drive
- A
- Travel speed
- 13 km/h
- Frequency
- 30 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.6 m
- Amplitude
- 2.14 mm
- Turning radius outside
- 3.89 m
- Statical line load
- 60.6 kg/cm
- Model series
- BW
- Engine manuf.
- Deutz
- Engine type
- TCD2012 L06
- Engine power
- 150 kW
- Revolutions at max torque
- 2200 rpm
- Emission level
- T3
More technical details, like: turning radius inside, centrifugal force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
