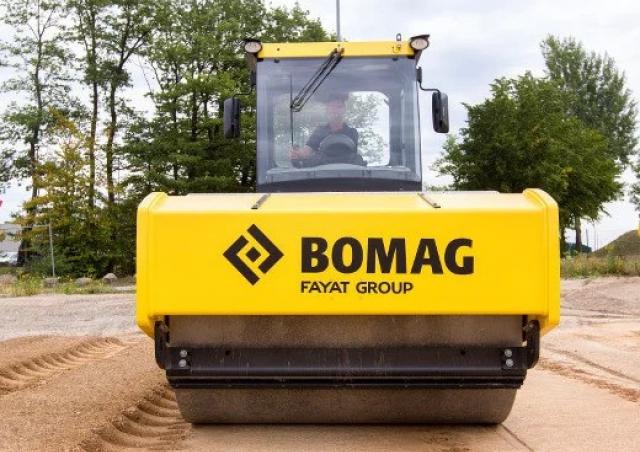

Bomag BW 216 PDHC-4 Specifications & Technical Data (2007-2008)

Technical specs - BW 216 PDHC-4 Bomag

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 17 t

Transport length: 6 m

Transport width: 2.3 m

Transport height: 2.97 m

Vibration: e

Drive: A

Travel speed: 12 km/h

Frequency: 36 Hz

Roller width: 2.13 m

Rollers Ø: 1.48 m

Amplitude: 1.64 mm

Model series: BW

Engine manuf.: Deutz

Engine type: TCD2013 L04

Engine power: 119 kW

Revolutions at max torque: 2200 rpm

More technical details, like: turning radius outside, turning radius inside, statical line load, centrifugal force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Sheep foot: Yes
Oscillation: No
Compression control: No
Aircondition: No

Bomag BW 216 PDHC-4 FAQ

When was the Bomag BW 216 PDHC-4 manufactured?

The Bomag BW 216 PDHC-4 was manufactured from 2007 to 2008.

How much does the Bomag BW 216 PDHC-4 weigh?

The Bomag BW 216 PDHC-4 weighs 17 tons.

What are the transport dimensions of the Bomag BW 216 PDHC-4?

The Bomag BW 216 PDHC-4 has a transport length of 6 meters, a transport width of 2.3 meters, and a transport height of 2.97 meters.

What is the travel speed of the Bomag BW 216 PDHC-4?

The Bomag BW 216 PDHC-4 has a travel speed of 12 km/h.

What type of drive system does the Bomag BW 216 PDHC-4 use for its undercarriage?

The Bomag BW 216 PDHC-4 uses an all-wheel drive system for its undercarriage.

What are the compaction capabilities of the Bomag BW 216 PDHC-4?

The Bomag BW 216 PDHC-4 features a single vibration system with a frequency of 36 Hz and an amplitude of 1.64 mm.

What are the roller specifications of the Bomag BW 216 PDHC-4?

The Bomag BW 216 PDHC-4 has a roller width of 2.13 meters and a roller diameter of 1.48 meters.

How much is a Bomag BW 216 PDHC-4 Single-drum Roller (2007u20132008) worth?

The residual value of the Bomag BW 216 PDHC-4 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
