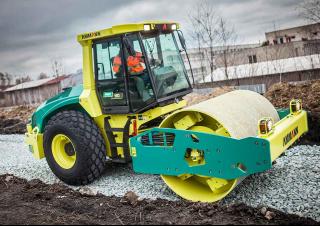

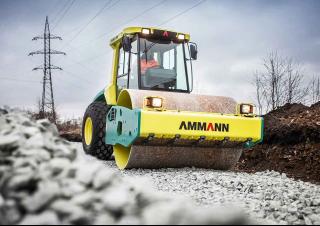

ASC 110 D Ammann ASC 110 D Specifications & Technical Data (2013—2022)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - ASC 110 D Ammann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 16.45 t
- Transport length
- 5.78 m
- Transport width
- 2.26 m
- Transport height
- 3.07 m
- Vibration
- e
- Drive
- A
- Travel speed
- 12.8 km/h
- Frequency
- 35 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.5 m
- Amplitude
- 2 mm
- Statical line load
- 34.8 kg/cm
- Model series
- ASC
- Engine manuf.
- Cummins
- Engine type
- QSB4.5-C160
- Engine power
- 119 kW
- Displacement
- 4.5 l
- Emission level
- T3
More technical details, like: turning radius outside, turning radius inside, centrifugal force, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
Yes
- Aircondition
-
No
