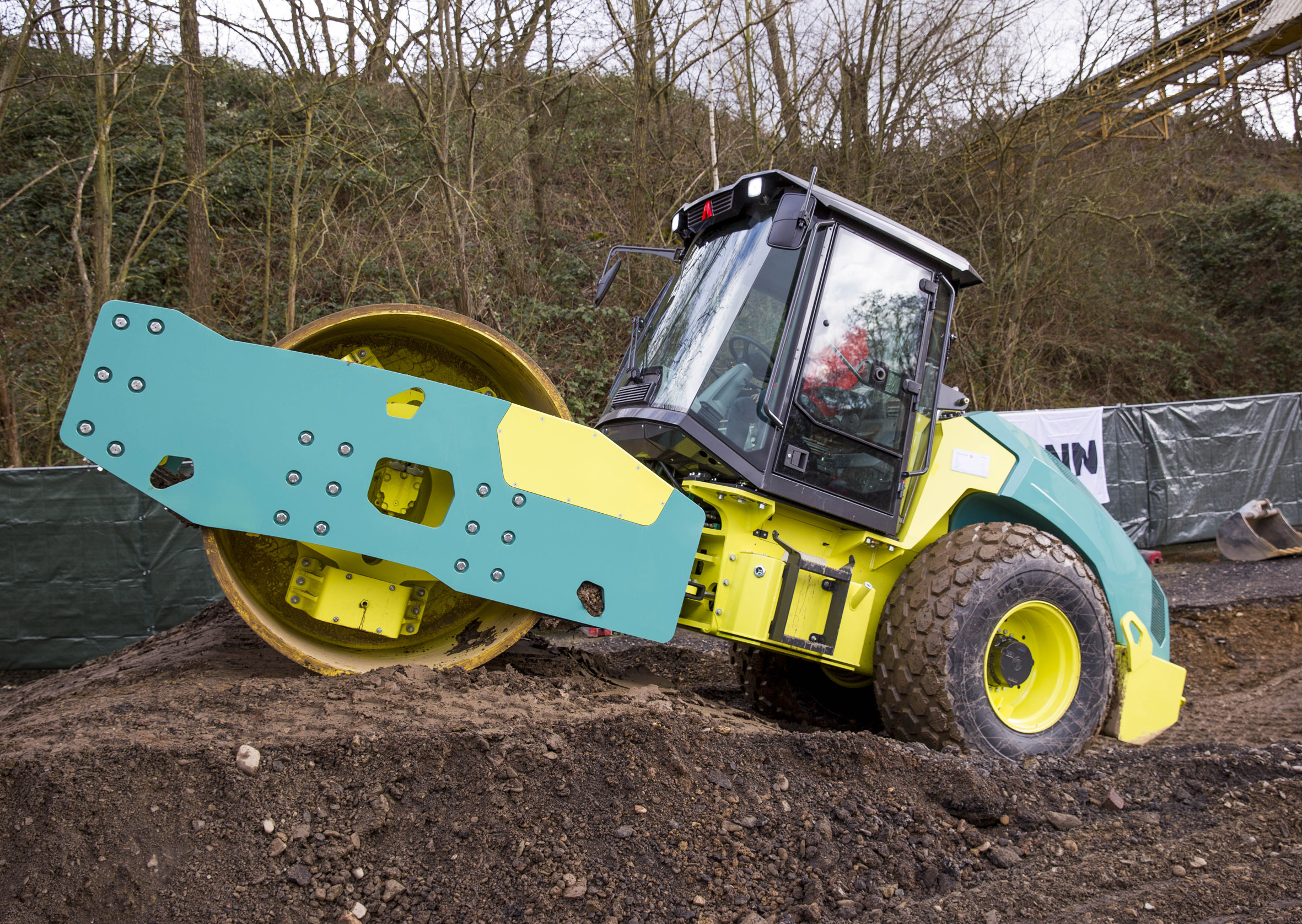

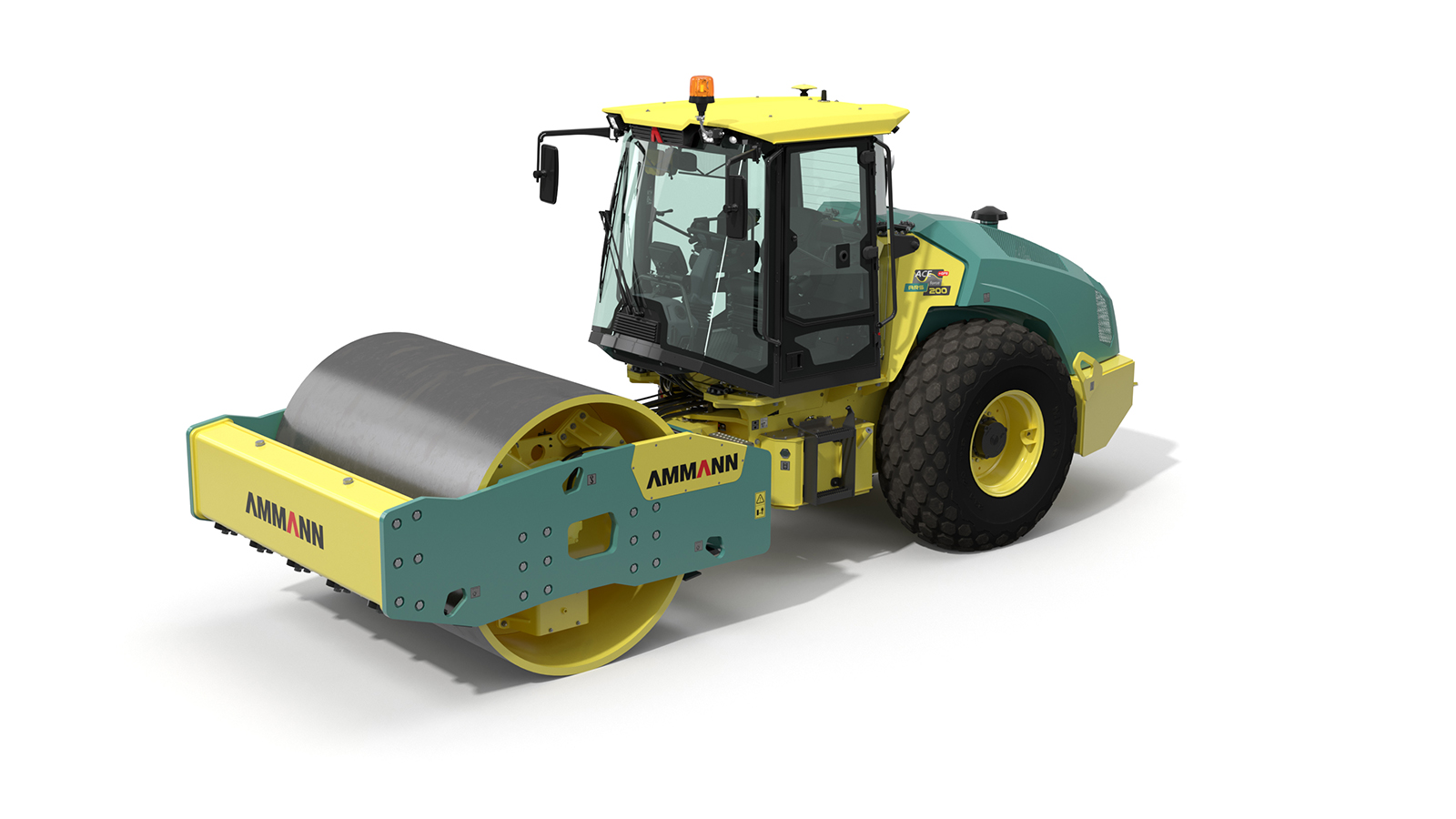

ARS 200 Ammann ARS 200 Specifications & Technical Data (2017—2021)

Weight: 19.5t – Transport length: 6.68m – Transport width: 2.26m – Transport height: 2.85m – Vibration: e – Drive: A

Rollers Single-drum Rollers Ammann ARS 200

ARS 200

Years of manufacture: 2017—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - ARS 200 Ammann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 19.5 t

Transport length: 6.68 m

Transport width: 2.26 m

Transport height: 2.85 m

Vibration: e

Drive: A

Travel speed: 11 km/h

Frequency: 34 Hz

Roller width: 2.13 m

Rollers Ø: 1.6 m

Amplitude: 2 mm

Statical line load: 58.6 kg/cm

Model series: ARS

Engine manuf.: Deutz

Engine type: TCD6.1 L6

Engine power: 160 kW

Emission level: EU V

More technical details, like: turning radius outside, turning radius inside, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: Yes
Sheep foot: Yes
Oscillation: No
Compression control: Yes
Aircondition: Yes

Download datasheets (PDF)

Ammann ARS 200 FAQ

When was the Ammann ARS 200 manufactured?

The Ammann ARS 200 was manufactured from 2017 to 2021.

How much does the Ammann ARS 200 weigh?

The Ammann ARS 200 weighs 19.5 tons.

What are the transport dimensions of the Ammann ARS 200?

The Ammann ARS 200 has a transport length of 6.68 meters, a transport width of 2.26 meters, and a transport height of 2.85 meters.

What is the travel speed of the Ammann ARS 200 single-drum roller?

The Ammann ARS 200 has a travel speed of 11 km/h.

What type of drive system does the Ammann ARS 200 have in its undercarriage?

The Ammann ARS 200 has an all-wheel drive system in its undercarriage.

What are the compaction capabilities of the Ammann ARS 200 single-drum roller?

The Ammann ARS 200 features a single vibration system with a frequency of 34 Hz, an amplitude of 2 mm, and a statical line load of 58.6 kg/cm.

What are the roller specifications of the Ammann ARS 200 single-drum roller?

The Ammann ARS 200 has a roller width of 2.13 meters and a roller diameter of 1.6 meters.

How much is a Ammann ARS 200 Single-drum Roller (2017u20132021) worth?

The residual value of the Ammann ARS 200 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
