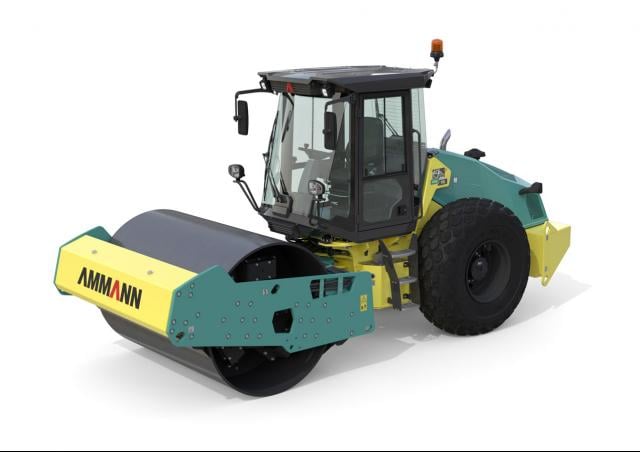

ARS 110 Ammann ARS 110 Specifications & Technical Data (2019—2026)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - ARS 110 Ammann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 14.63 t
- Transport length
- 5.9 m
- Transport width
- 2.26 m
- Transport height
- 2.97 m
- Vibration
- e
- Drive
- A
- Frequency
- 35 Hz
- Roller width
- 2.13 m
- Rollers Ø
- 1.5 m
- Amplitude
- 2.06 mm
- Turning radius inside
- 3.6 m
- Statical line load
- 30.3 kg/cm
- Model series
- ARS
- Engine manuf.
- Deutz
- Engine type
- TCD3.6 L4
- Engine power
- 100 kW
- Emission level
- EU V
More technical details, like: travel speed, turning radius outside, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
Yes
- Sheep foot
-
Yes
- Oscillation
-
No
- Compression control
-
Yes
- Aircondition
-
Yes
Download datasheets (PDF)
