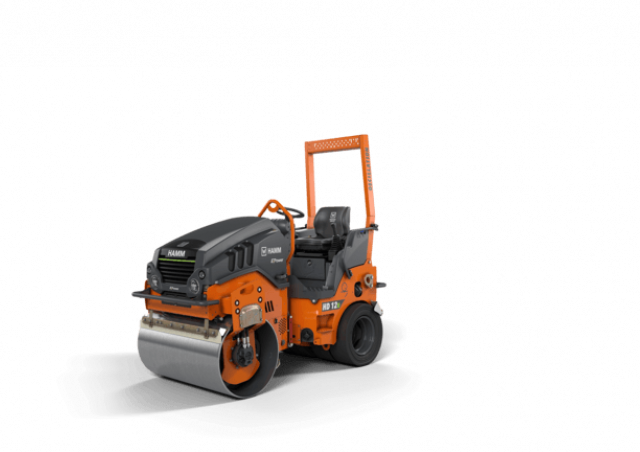

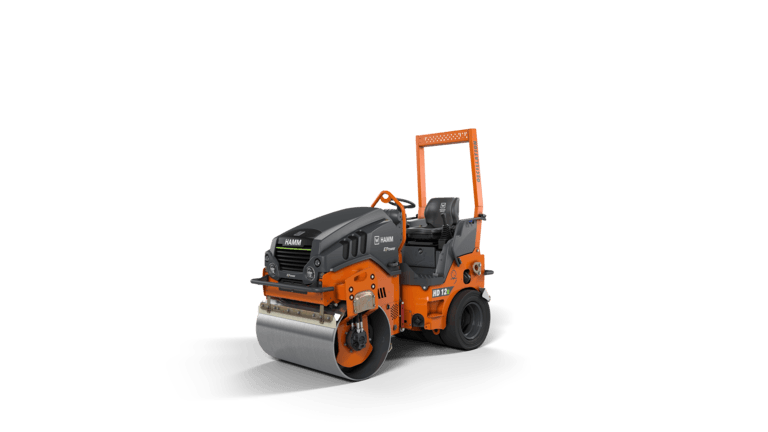

Hamm HD 12e OT Specifications & Technical Data (2023-2026)

Technical specs - HD 12e OT Hamm

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.73 t

Transport length: 2.53 m

Transport width: 1.31 m

Transport height: 2.48 m

Steering: KL

Travel speed: 9.6 km/h

Roller width: 1.2 m

Rollers Ø: 0.72 m

Statical line load: 11.72 kg/cm

Model series: HD

More technical details, like: vibration, drive, frequency, turning radius outside, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: vibration, drive, frequency, turning radius outside, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Infrared heater: No
Oscillation: No
Compression control: No
Aircondition: No

Download datasheets (PDF)

Hamm HD 12e OT FAQ

When was the Hamm HD 12e OT manufactured?

The Hamm HD 12e OT was first produced in 2023.

How much does the Hamm HD 12e OT weigh?

The Hamm HD 12e OT weighs 2.73 tons.

What are the transport dimensions of the Hamm HD 12e OT?

The Hamm HD 12e OT has a transport length of 2.53 meters, a transport width of 1.31 meters, and a transport height of 2.48 meters.

What is the travel speed of the Hamm HD 12e OT?

The Hamm HD 12e OT has a travel speed of 9.6 km/h.

What type of steering does the Hamm HD 12e OT use for maneuverability?

The Hamm HD 12e OT uses articulated-frame steering for maneuverability.

What is the statical line load of the Hamm HD 12e OT?

The Hamm HD 12e OT has a statical line load of 11.72 kg/cm.

What are the roller specifications of the Hamm HD 12e OT?

The Hamm HD 12e OT has rollers that are 1.2 meters wide with a diameter of 0.72 meters.

How much is a Hamm HD 12e OT Combination Roller (2023u20132025) worth?

The residual value of the Hamm HD 12e OT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
