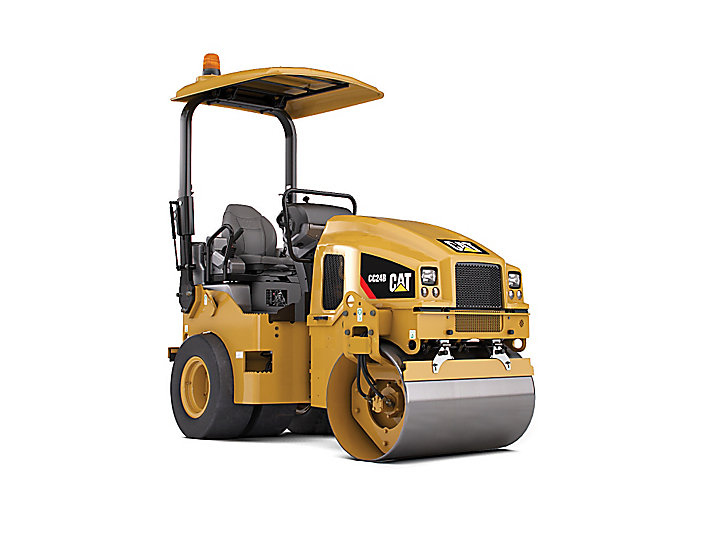

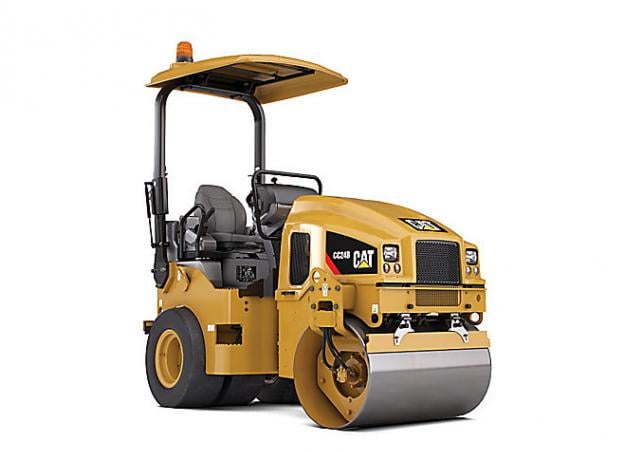

CC24B Caterpillar CC24B Specifications & Technical Data (2013—2019)
Technical specs - CC24B Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 2.44 t
- Transport length
- 2.57 m
- Transport width
- 1.31 m
- Transport height
- 2.59 m
- Vibration
- d
- Drive
- E
- Steering
- KL
- Travel speed
- 12 km/h
- Frequency
- 63 Hz
- Roller width
- 1.2 m
- Rollers Ø
- 0.72 m
- Turning radius outside
- 2.47 m
- Statical line load
- 10.2 kg/cm
- Model series
- CC
- Engine manuf.
- Caterpillar
- Engine type
- C1.5
- Engine power
- 27 kW
- Displacement
- 1.5 l
- Emission level
- Tier 4 f
More technical details, like: dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
