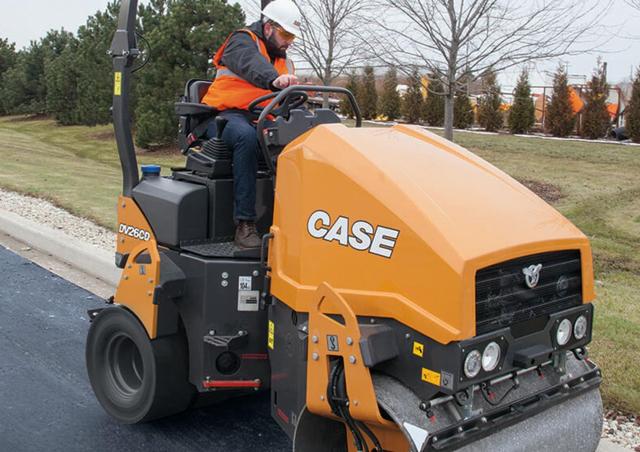

DV26CD Case DV26CD Specifications & Technical Data (2021—2026)
Technical specs - DV26CD Case
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 2.35 t
- Transport length
- 2.585 m
- Transport width
- 1.295 m
- Transport height
- 1.935 m
- Travel speed
- 11 km/h
- Frequency
- 66 Hz
- Roller width
- 1.2 m
- Turning radius outside
- 3.91 m
- Statical line load
- 10.3 kg/cm
- Model series
- CD
- Engine manuf.
- Kubota
- Engine type
- D1803
- Engine power
- 25 kW
- Displacement
- 1.826 l
- Revolutions at max torque
- 1500 rpm
- Max. torque
- 115.8 Nm
- No. of cylinders
- 3
- Cylinder bore x stroke
- 88x90 mm
- Emission level
- Tier 4 Final
More technical details, like: vibration, drive, steering, rollers Ø, dimension lxwxh are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
Yes
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
