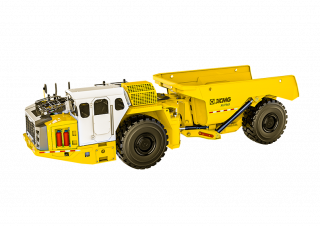

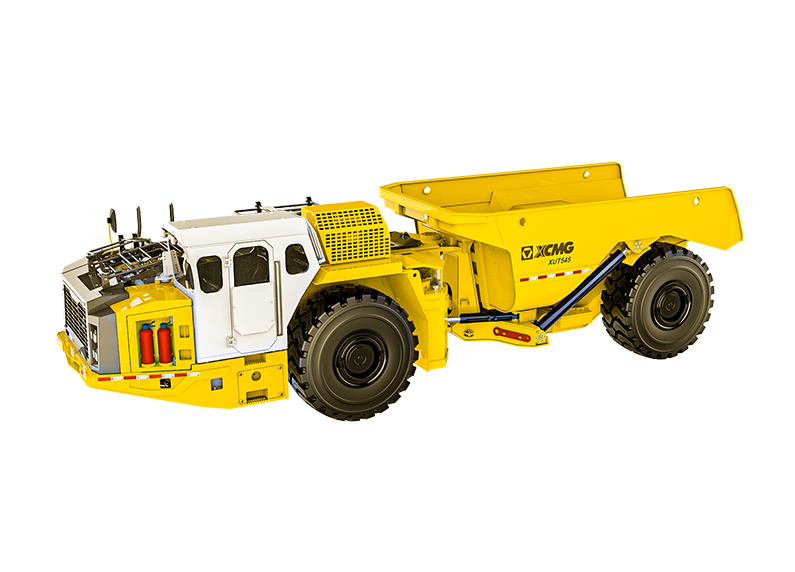

XUT545 XCMG XUT545 Specifications & Technical Data (2025—2026)
Visit XCMG live at
Technical specs - XUT545 XCMG
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 37.5 t
- Dump capacity
- 20 m³
- Net load
- 45 t
- Steering
- KL
- Transport length
- 10.59 m
- Transport width
- 3.07 m
- Transport height
- 2.9 m
- Travel speed
- 30.1 km/h
- Turning radius outside
- 9.08 m
- Loading height
- 2.7 m
- Model series
- XUT
- Engine manuf.
- Volvo
- Engine type
- TAD1643VE-B
- Engine power
- 450 kW
- Emission level
- Euro III
More technical details, like: standard tyres, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Central lubrication
-
No
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
No
