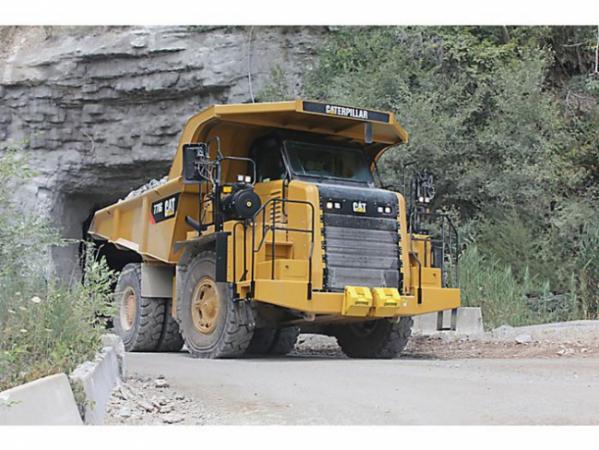

770G Caterpillar 770G Specifications & Technical Data (2012—2020)
.jpg)
.jpg)
Technical specs - 770G Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 32.56 t
- Standard tyres
- 18.00 R 33
- Dump capacity
- 25.2 m³
- Net load
- 38.65 t
- Steering
- VL
- Transport length
- 8.8 m
- Transport width
- 3.69 m
- Transport height
- 4.21 m
- Travel speed
- 75 km/h
- Loading height
- 3.23 m
- Engine manuf.
- Caterpillar
- Engine type
- C15 Acert
- Engine power
- 381 kW
- Displacement
- 15.2 l
- Max. torque
- 2486 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 137x171 mm
- Emission level
- Tier 3
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Central lubrication
-
Yes
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
Yes
