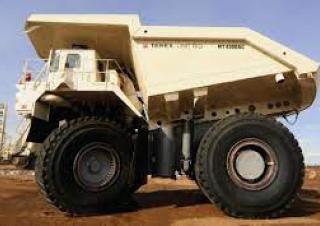

MT6300AC Terex MT6300AC Specifications & Technical Data (2008—2023)
Technical specs - MT6300AC Terex
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 240 t
- Standard tyres
- 59/80R63
- Dump capacity
- 230 m³
- Net load
- 363 t
- Steering
- VL
- Transport length
- 15.57 m
- Transport width
- 9.7 m
- Transport height
- 7.92 m
- Travel speed
- 64 km/h
- Turning radius outside
- 16.2 m
- Loading height
- 7.39 m
- Model series
- MT
- Engine manuf.
- MTU
- Engine type
- 20V4000
- Engine power
- 2796 kW
- No. of cylinders
- 20
More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Central lubrication
-
No
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
No
