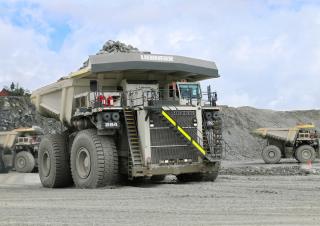

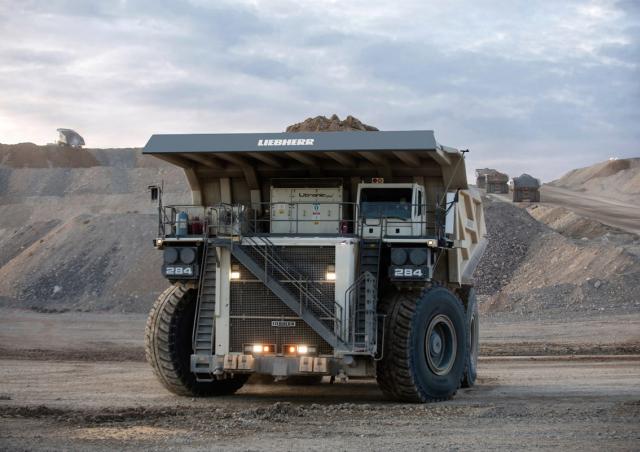

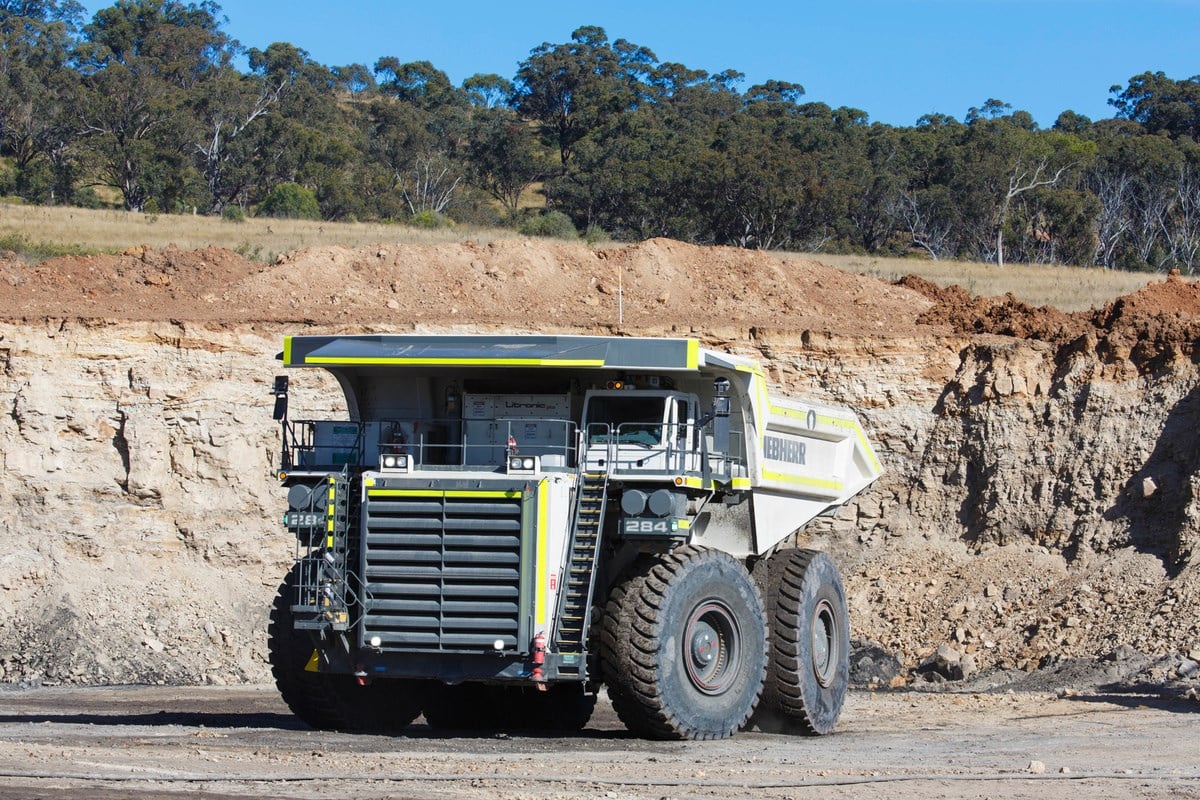

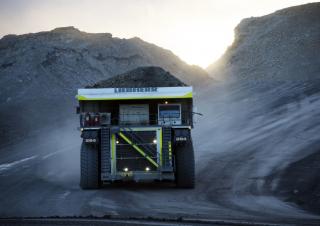

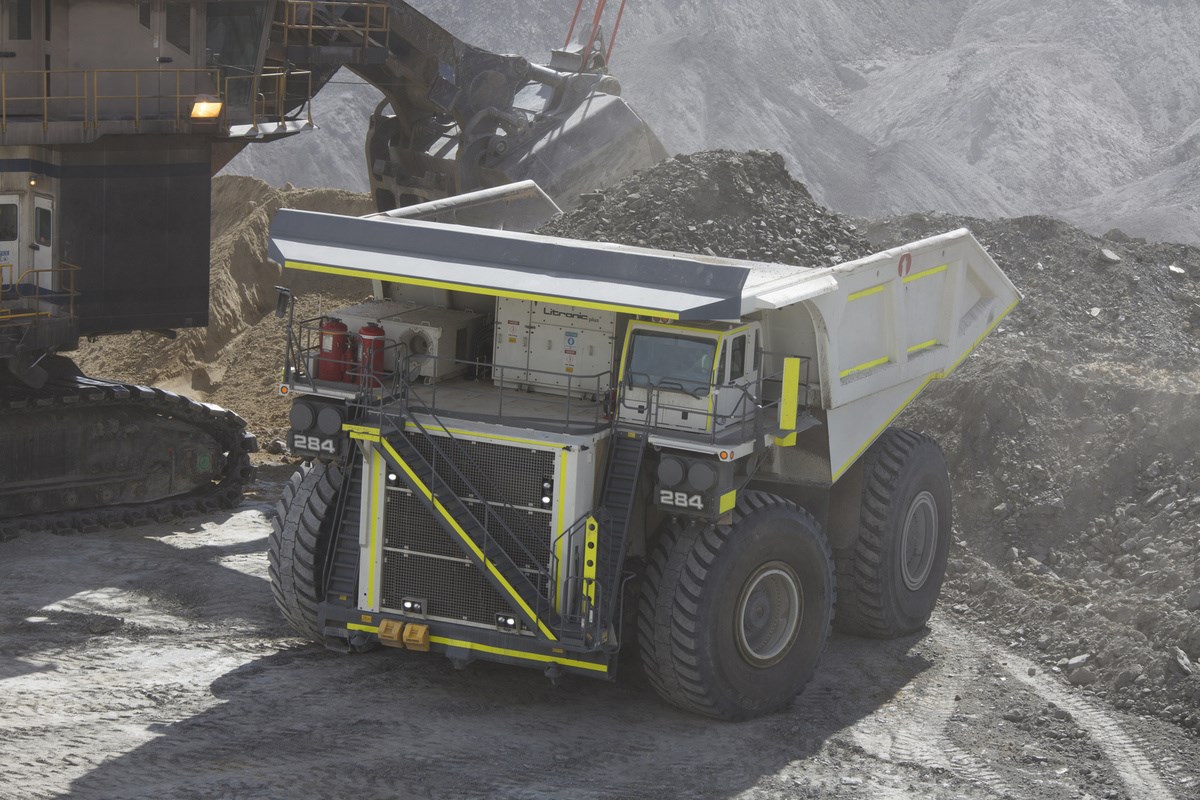

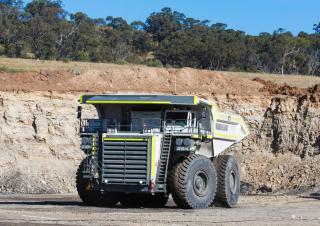

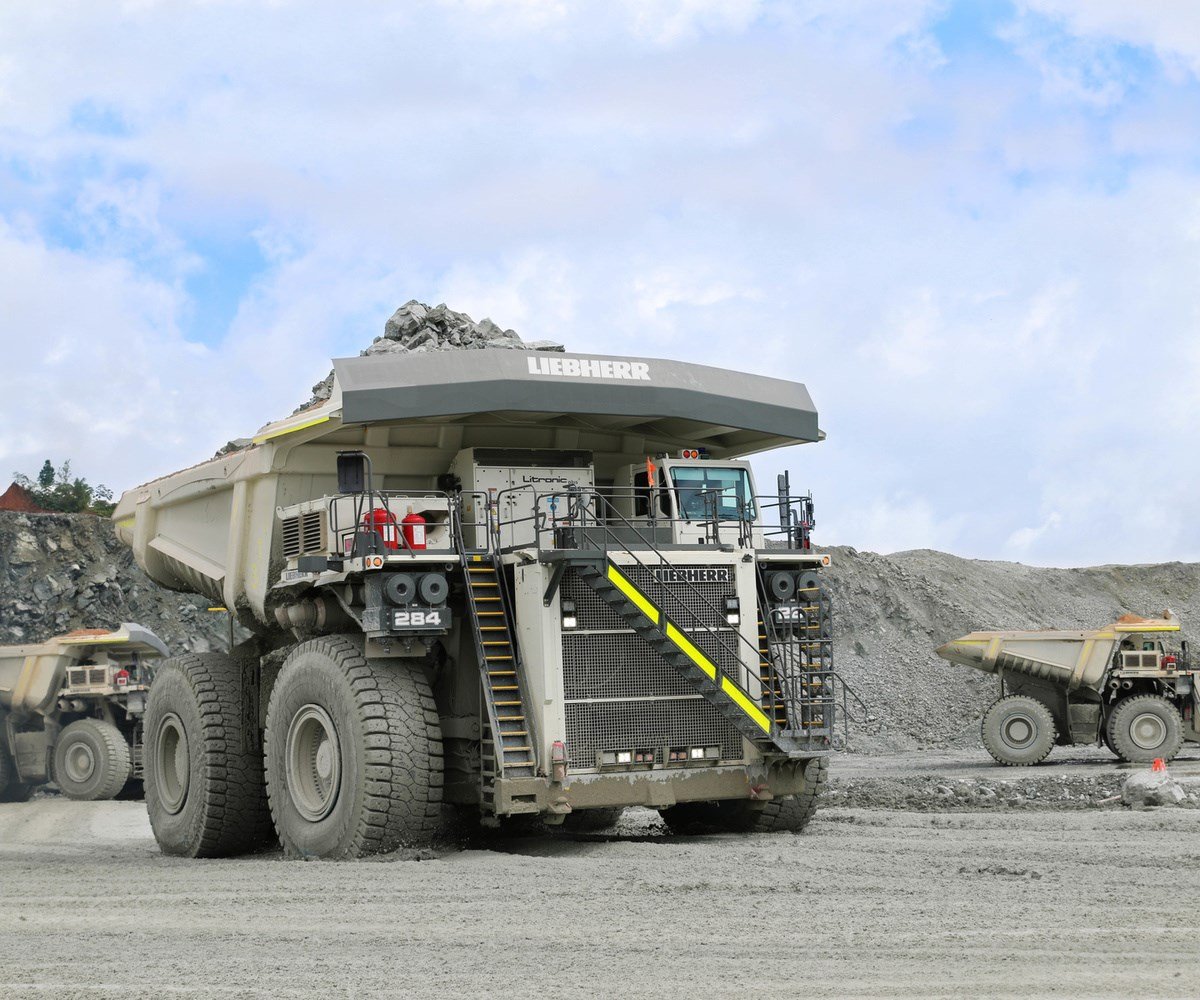

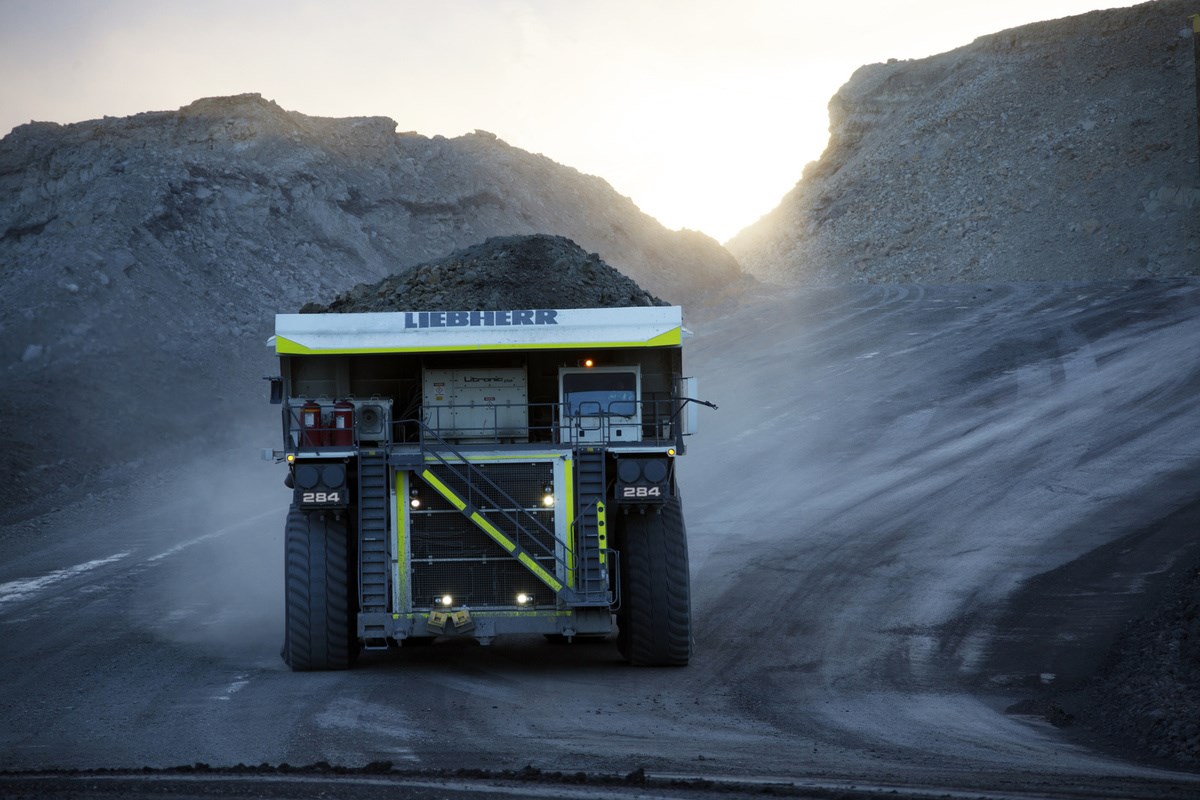

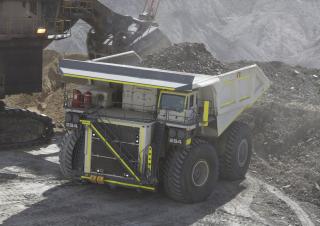

    Liebherr T 284 Specifications & Technical Data (2012-2022)

    Rate this machine now!

    Weight: 237t – Standard tyres: 59/80R63 – Net load: 363t – Steering: VL – Transport length: 15.69m – Transport width: 9.68m

    Technical specs - T 284 Liebherr


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 237 t
    • Standard tyres 59/80R63
    • Net load 363 t
    • Steering VL
    • Transport length 15.69 m
    • Transport width 9.68 m
    • Transport height 8.29 m
    • Travel speed 64 km/h
    • Turning radius outside 17.2 m
    • Loading height 7.425 m
    • Engine manuf. MTU
    • Engine type 20V4000 C23L
    • Engine power 3000 kW
    • Displacement 95.4 l
    • Revolutions at max torque 1800 rpm
    • No. of cylinders 20
    • Cylinder bore x stroke 170x210 mm

    More technical details, like: dump capacity, dimension lxwxh, max. torque, emission level are available in the full technical specs.

    Basic model with ROPS cabin and std. trough

    Special equipment

    • Diesel particulate filter
    • Central lubrication
    • Heated dump body
    • Tailgate
    • Aircondition
