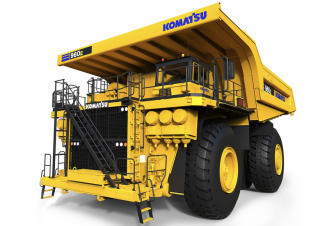

960E-1 Komatsu 960E-1 Specifications & Technical Data (2020—2026)
Visit Komatsu live at
.jpg){kind=logo}
Technical specs - 960E-1 Komatsu
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 249.47 t
- Standard tyres
- 56/80 R63
- Dump capacity
- 149 m³
- Transport length
- 15.34 m
- Transport width
- 8.74 m
- Transport height
- 7.67 m
- Travel speed
- 64.5 km/h
- Loading height
- 7.39 m
- Engine manuf.
- Komatsu
- Engine type
- SSDA18V170
- Engine power
- 2610 kW
- No. of cylinders
- 18
- Emission level
- Tier IV
More technical details, like: net load, steering, turning radius outside, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Central lubrication
-
No
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
Yes
