EH 750 Euclid EH 750 Specifications & Technical Data (2001—2003)

Weight: 35.44t – Standard tyres: 18.00 R 33 – Dump capacity: 27.4m³ – Net load: 38.6t – Steering: VL – Model series: EH

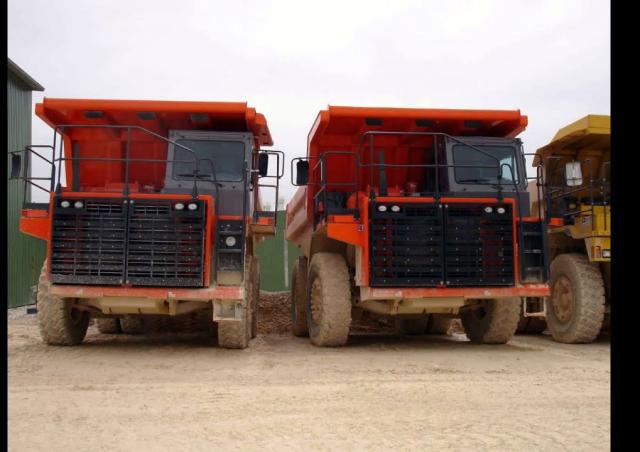

Rigid Dump Trucks Euclid EH 750

Technical specs - EH 750 Euclid

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
35.44 t
Standard tyres
18.00 R 33
Dump capacity
27.4 m³
Net load
38.6 t
Steering
VL
Model series
EH
Engine manuf.
Cummins
Engine type
QSK19C
Engine power
392 kW
Displacement
18.2 l
Revolutions at max torque
1400 rpm

More technical details, like: transport length, transport width, transport height, travel speed, turning radius outside, loading height, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Central lubrication
No
Heated dump body
No
Tailgate
No
Aircondition
No

Euclid EH 750 FAQ

When was the Euclid EH 750 manufactured?

The Euclid EH 750 was manufactured from 2001 to 2003.

How much does the Euclid EH 750 rigid dump truck weigh?

The Euclid EH 750 rigid dump truck weighs 35.44 tons.

What are the undercarriage specifications of the Euclid EH 750 rigid dump truck?

The Euclid EH 750 rigid dump truck is equipped with standard tyres sized 18.00 R 33.

What type of steering does the Euclid EH 750 rigid dump truck have?

The Euclid EH 750 rigid dump truck features front steering.

What is the material handling capacity of the Euclid EH 750 rigid dump truck?

The Euclid EH 750 has a net load capacity of 38.6 tons and a dump capacity of 27.4 cubic meters.

How much is a Euclid EH 750 Rigid dump truck (2001u20132003) worth?

The residual value of the Euclid EH 750 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
