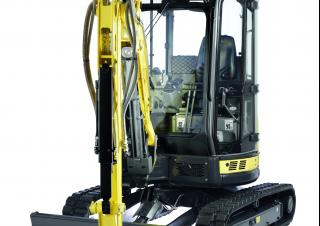

VIO 38 UCR Yanmar excavator specs & dimensions (2015 - 2017)

Yanmar VIO 38 UCR is a mini excavator manufactured from 2015 to 2017. It has a weight of 3.75 tons and a track width of 300 mm. Th…

Yanmar VIO 38 UCR is a mini excavator manufactured from 2015 to 2017. It has a weight of 3.75 tons and a track width of 300 mm. The transport dimensions are 4.63 meters in length, 1.74 meters in width, and 2.54 meters in height. The dredging depth is 3.31 meters, and the maximum horizontal reach is 3.74 meters. This model is equipped with a blade and rubber tracks.

VIO 38 UCR

Years of manufacture: 2015—2017

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - VIO 38 UCR Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.75 t

Transport length: 4.63 m

Transport width: 1.74 m

Transport height: 2.54 m

Track width: 300 mm

Driver protection: Kb

Max. Reach horizontal: 3.74 m

Dredging depth: 3.31 m

Model series: VIO

Engine manuf.: Yanmar

Engine type: 3TNV88

Engine power: 20.7 kW

Displacement: 2.642 l

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Yanmar VIO 38 UCR FAQ

When was the Yanmar VIO 38 UCR manufactured?

The Yanmar VIO 38 UCR was manufactured from 2015 to 2017.

How much does the Yanmar VIO 38 UCR weigh?

The Yanmar VIO 38 UCR weighs 3.75 tons.

What are the transport dimensions of the Yanmar VIO 38 UCR mini excavator?

The Yanmar VIO 38 UCR has a transport length of 4.63 meters, a transport width of 1.74 meters, and a transport height of 2.54 meters.

What is the track width of the Yanmar VIO 38 UCR mini excavator?

The Yanmar VIO 38 UCR mini excavator has a track width of 300 mm.

What are the dredging depth and maximum horizontal reach of the Yanmar VIO 38 UCR mini excavator?

The Yanmar VIO 38 UCR has a dredging depth of 3.31 meters and a maximum horizontal reach of 3.74 meters.

What operator safety features does the Yanmar VIO 38 UCR have?

The Yanmar VIO 38 UCR has a cabin for driver protection.

How much is a Yanmar VIO 38 UCR Mini excavator (2015u20132017) worth?

The residual value of the Yanmar VIO 38 UCR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
