TC 37 Terex excavator specs & dimensions (2006 - 2016)

Model rating
10,00 / 10

Terex TC 37 is a Mini Excavator manufactured from 2006 to 2016, with a weight of 3.57 t and a track width of 300 mm. It has a tran…

Terex TC 37 is a Mini Excavator manufactured from 2006 to 2016, with a weight of 3.57 t and a track width of 300 mm. It has a transport length of 4.75 m, a transport width of 1.76 m, and a transport height of 2.49 m. The machine features a tear-out force of 16.2 kN, a dredging depth of 3.18 m, and a maximum horizontal reach of 5.5 m. The bucket width is 0.4 m, with a bucket capacity ranging from 0.054 m³ to 0.191 m³. Special equipment includes a blade, a mechanical quick hitch, and rubber tracks.

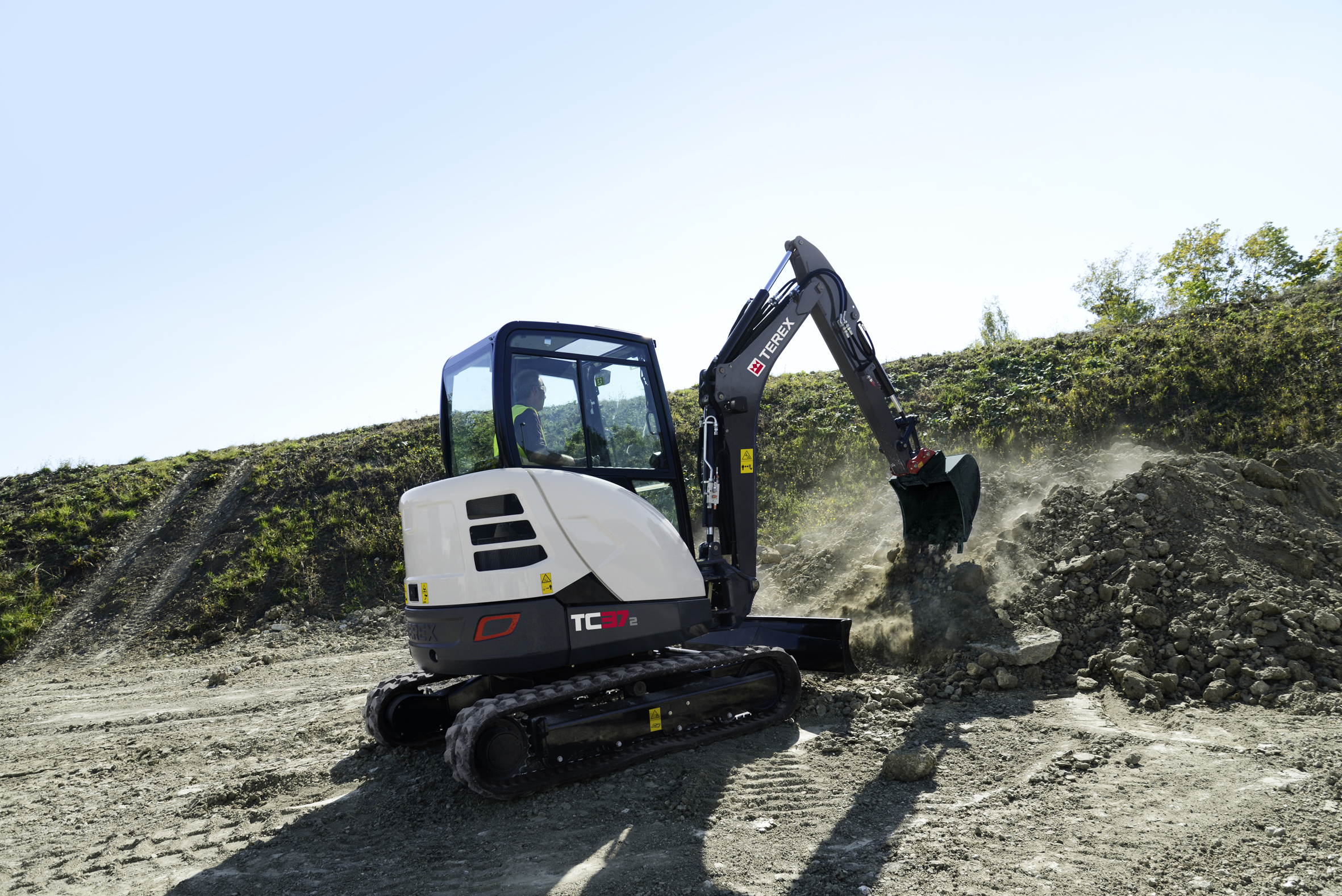

Mini Excavators Terex TC 37
Mini Excavators Terex TC 37
Mini Excavators Terex TC 37
Mini Excavators Terex TC 37
Mini Excavators Terex TC 37
Mini Excavators Terex TC 37

Technical specs - TC 37 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.57 t
Transport length
4.75 m
Transport width
1.76 m
Transport height
2.49 m
Bucket capacity min.
0.054 m³
Bucket capacity max.
0.191 m³
Bucket width
0.4 m
Track width
300 mm
Driver protection
FD
Max. Reach horizontal
5.5 m
Dredging depth
3.18 m
Tear-out force
16.2 kN
Model series
TC
Engine manuf.
Mitsubishi
Engine type
S4L2
Engine power
22 kW
Displacement
1.758 l
Revolutions at max torque
1500 rpm

More technical details, like: bucket capacity, standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

Terex TC 37 FAQ

When was the Terex TC 37 manufactured?

The Terex TC 37 was manufactured from 2006 to 2016.

How much does the Terex TC 37 weigh?

The Terex TC 37 weighs 3.57 tons.

What are the transport dimensions of the Terex TC 37 mini excavator?

The Terex TC 37 has a transport length of 4.75 meters, a transport width of 1.76 meters, and a transport height of 2.49 meters.

What is the track width of the Terex TC 37 mini excavator?

The Terex TC 37 mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Terex TC 37 mini excavator?

The Terex TC 37 mini excavator has a dredging depth of 3.18 meters and a maximum horizontal reach of 5.5 meters.

What is the tear-out force of the Terex TC 37 mini excavator?

The Terex TC 37 mini excavator has a tear-out force of 16.2 kN.

What are the primary work tool specifications of the Terex TC 37 mini excavator?

The Terex TC 37 mini excavator has a bucket with a maximum capacity of 0.19 cubic meters, a minimum capacity of 0.05 cubic meters, and a bucket width of 0.4 meters.

What operator safety and support features does the Terex TC 37 have?

The Terex TC 37 provides operator safety with a canopy for driver protection.

How much is a Terex TC 37 Mini excavator (2006u20132016) worth?

The residual value of the Terex TC 37 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Terex TC 37 overview

Tyres / Tracks

OTHER OPTIONAL EQUIPMENT
Mechanical quick attachment system (QAS) Quick coupler system, mechanical (real Lehnhoff system), type MS03 Crane loading Wire rope belt Other optional equipment available on request Front dozer blade - extra-long version Canopy with working fl oodlight (weight reduction: 80 kg) Special coating / adhesive fi lms

Dimensions and weight

Maintenance-free crawler-type undercarriage. Idler suspension with hydraulic crawler track tensioning.
Width rubber crawlers / steel crawlers300 mm
Tread width1450 mm
Total length (sprocket - idler)1712 mm
Total length (undercarriage)2152 mm
DOZER BLADE
Independent of drive train sensitive control via separate hand lever."
Transport weight (incl. bucket)EQUIPMENT 3570 kg
Operating weight acc. to ISO 6016 (incl. operator)3650 kg
Total length (travel position)3180 mm
Total length (trailer transport position)4750 mm
Total height (travel position)3250 mm
Total width1760 mm
Uppercarriage tailswing900 mm
Uppercarriage frontswing1860 mm
Working envelope 180° / 360°2760 / 3720 mm
Ground clearance300 mm
Bucket digging force (ISO 6015)24600 N"
Stick digging force (ISO 6015)16200 N"
Ground pressure (rubber crawlers)0.29 daN/cm2
Ground pressure (steel crawlers)0.30 daN/cm2
Bucket hinge heightLoad radius from center of ring gear
Dipperstick 1600 mm2.5 m3.0 m3.5 m4.5 m5.0 m
EndSideEndSideEndSideEndSideEndSide
2.0 mS--1.150.800.970.640.930.500.860.37
T--0.980.790.780.620.620.480.510.39
1.0 mS1.911.051.440.781.200.611.030.480.870.40
T1.851.020.930.760.740.590.600.470.500.39
0 mS2.040.951.610.711.220.560.980.460.800.38
T2.000.920.860.700.660.550.570.450.490.37

Other features

DRIVER'S STAND
Float position - Front dozer blade Operator seat MSG 20 Operator seat MSG 85 (comfort version), hydraulic damping, extra high backrest, tilt adjustable armrests, longitudinal-horizontal suspension, mechanical lumbar support Operator seat MSG 95 (premium version), air cushioning, extra high backrest and tilt adjustable armrests, longitudinal horizontal suspension, seat heating and backrest heater, pneumatic lumbar support point.

Tables

Width x height1760 x 360 mm
Dozer cut below ground450 mm
Dozer lift above ground300 mm
Slope angle35°
Nominal voltage12 V
Battery12 V / 74 Ah
Generator12 V / 50 A
Starter12 V / 2.0 kW
Travel speed forward and reverse"0-2.7 / 4.6 kph
Gradeabilitymax. 60 %
Drawbar pull 1st / 2nd speed range3100 / 1600 daN
Hydrostatic drive also acts as wear-resistant brake. Additional spring-loaded multi-disc brake. Internally toothed ring gear."
Swing speed0-10 rpm
