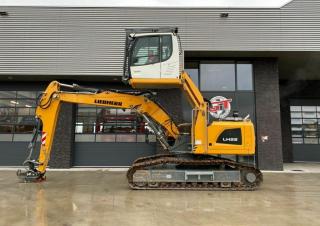

LH 22 C Industry Litronic Liebherr LH 22 C Industry Litronic Specifications & Technical Data (2021—2026)
Visit Liebherr live at
.jpg){kind=logo}
Technical specs - LH 22 C Industry Litronic Liebherr
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 21 t
- Boom
- UA
- Transport length
- 7.6 m
- Transport height
- 3.088 m
- Transport width
- 3.12 m
- Track width
- 600 mm
- Model series
- LH
- Engine manuf.
- Liebherr
- Engine type
- D924
- Engine power
- 105 kW
- Displacement
- 4.5 l
- No. of cylinders
- 4
- Cylinder bore x stroke
- 104x132 mm
- Emission level
- Stage V
More technical details, like: standard tyres, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.
Download datasheets (PDF)
Liebherr LH 22 C Industry Litronic FAQ
What is the weight of the Liebherr LH 22 C Industry Litronic material handler?
What are the transport dimensions of the Liebherr LH 22 C Industry Litronic?
What is the track width of the Liebherr LH 22 C Industry Litronic's undercarriage?
What is the excavation performance feature of the Liebherr LH 22 C Industry Litronic?
How much is a Liebherr LH 22 C Industry Litronic Material handler (2021u20132025) worth?
