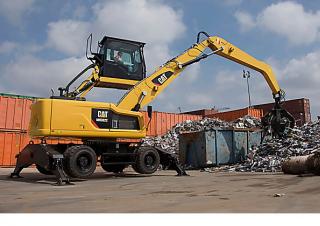

MH3022 Caterpillar MH3022 Specifications & Technical Data (2018—2021)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - MH3022 Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 22.67 t
- Standard tyres
- 10.00-20
- Boom
- UA
- Outrigger stabilisers
- 4 2/4-fold
- Transport length
- 9.025 m
- Transport height
- 3.62 m
- Transport width
- 2.55 m
- Max. Reach horizontal
- 9.325 m
- Dredging depth
- 1.655 m
- Travel speed
- 25 km/h
- Engine manuf.
- Caterpillar
- Engine type
- C7.1 Acert
- Engine power
- 126 kW
- Displacement
- 7.01 l
- Revolutions at max torque
- 1400 rpm
- Max. torque
- 830 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 105x135 mm
- Emission level
- Tier 4 Final/Stage IV
More technical details, like: tear-out force, dipper length, turning radius inside, turning radius outside, track width, model series, dimension lxwxh are available in the full technical specs.
Download specalog and datasheets (PDF)
Caterpillar MH3022 FAQ
How much does the Caterpillar MH3022 weigh?
What are the transport dimensions of the Caterpillar MH3022 material handler?
What is the travel speed of the Caterpillar MH3022 material handler?
What are the undercarriage specifications of the Caterpillar MH3022 material handler?
What are the excavation performance specifications of the Caterpillar MH3022 material handler?
