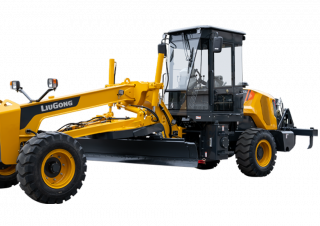

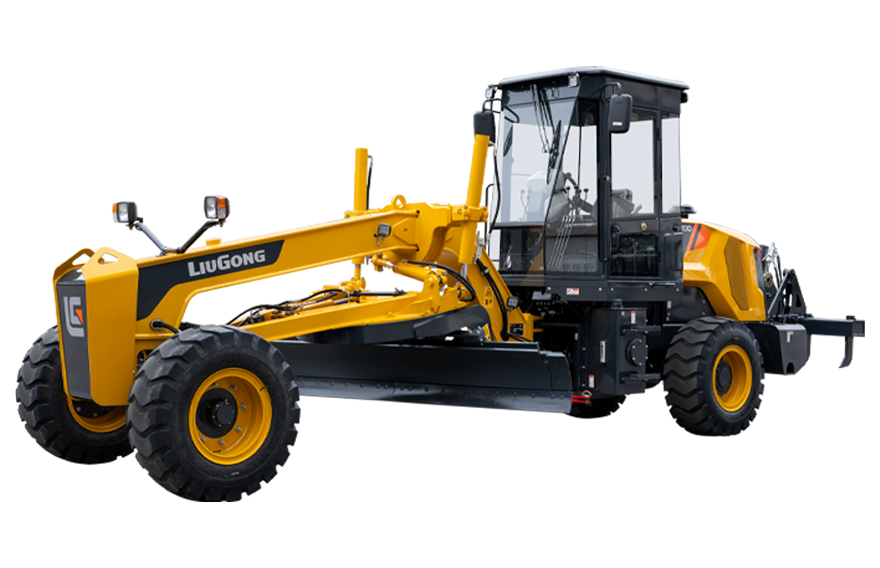

4120D Liugong 4120D Specifications & Technical Data (2024—2026)

Weight: 7.5t – Standard tyres: 16/70-24 – Transport length: 8.02m – Transport width: 2.09m – Transport height: 3.15m – Mouldboard width: 3.05m

Graders Liugong 4120D

Visit Liugong live at

Technical specs - 4120D Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.5 t
Standard tyres
16/70-24
Transport length
8.02 m
Transport width
2.09 m
Transport height
3.15 m
Mouldboard width
3.05 m
Travel speed
38 km/h
Turning radius outside
6 m
Model series
D
Engine manuf.
YUNNEI
Engine type
YN38GBZ2
Engine power
75 kW
Max. torque
332 Nm
No. of cylinders
4
Emission level
Tier 2

More technical details, like: steering mode, drive, front blade width, dimension lxwxh, displacement, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and central blade

Special equipment

Diesel particulate filter
No
Bilateral levelling automatic
No
Front blade
No
Rear ripper
No
Aircondition
No
