EC360F L Volvo excavator specs & Dimensions (2025 - 2026)

Weight: 41.53t – Transport length: 11.205m – Transport width: 3.39m – Transport height: 3.54m – Bucket capacity min.: 0.87m³ – Buc…

Weight: 41.53t – Transport length: 11.205m – Transport width: 3.39m – Transport height: 3.54m – Bucket capacity min.: 0.87m³ – Bucket capacity max.: 2.33m³

Check out detailed specifications, information and technical data for Volvo EC360F L excavator manufactured between 2025 - 2026. Get more in-depth insight with Volvo EC360F L digger specifications. See information, like: Weight: 41.53t – Transport length: 11.205m – Transport width: 3.39m – Transport height: 3.54m – Bucket capacity min.: 0.87m³ – Bucket capacity max.: 2.33m³ and more.

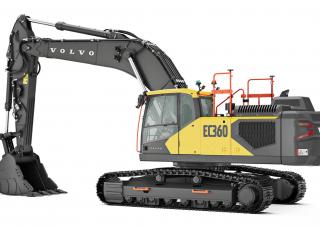

Crawler Excavators Volvo EC360F L
Crawler Excavators Volvo EC360F L
Crawler Excavators Volvo EC360F L
Crawler Excavators Volvo EC360F L
Crawler Excavators Volvo EC360F L
Crawler Excavators Volvo EC360F L
Crawler Excavators Volvo EC360F L
Crawler Excavators Volvo EC360F L

Visit Volvo live at

Technical specs - EC360F L Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
41.53 t
Transport length
11.205 m
Transport width
3.39 m
Transport height
3.54 m
Bucket capacity min.
0.87 m³
Bucket capacity max.
2.33 m³
Track width
800 mm
Boom
MB
Max. Reach horizontal
11.225 m
Dredging depth
7.595 m
Tear-out force
177 kN
Model series
EC
Engine manuf.
Volvo
Engine type
D8M
Engine power
220 kW
Displacement
7.7 l
Revolutions at max torque
1400 rpm
Max. torque
1400/1400 Nm
No. of cylinders
6
Cylinder bore x stroke
110x135 mm
Emission level
V

More technical details, like: bucket capacity, undercarriage, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No
