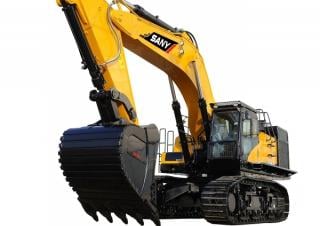

SY750H Sany excavator specs & Dimensions (2018 - 2026)

Sany SY750H is a crawler excavator manufactured since 2018. It has a weight of 76.2 tons and a track width of 600 mm. The transpor…

Sany SY750H is a crawler excavator manufactured since 2018. It has a weight of 76.2 tons and a track width of 600 mm. The transport dimensions are 12.865 meters in length, 4.03 meters in width, and 4.855 meters in height. The machine offers a tear-out force of 672 kN, a dredging depth of 7.605 meters, and a maximum horizontal reach of 12.037 meters. The bucket capacity is 4.2 cubic meters.

Crawler Excavators Sany SY750H

Visit Sany live at

Technical specs - SY750H Sany

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
76.2 t
Transport length
12.865 m
Transport width
4.03 m
Transport height
4.855 m
Bucket capacity
4.2 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
12.037 m
Dredging depth
7.605 m
Tear-out force
672 kN
Model series
SY

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sany SY750H FAQ

When was the Sany SY750H manufactured?

The Sany SY750H was first produced in 2018.

How much does the Sany SY750H weigh?

The Sany SY750H weighs 76.2 tons.

What are the transport dimensions of the Sany SY750H crawler excavator?

The Sany SY750H has a transport length of 12.87 meters, a transport width of 4.03 meters, and a transport height of 4.86 meters.

What is the track width of the Sany SY750H's undercarriage?

The Sany SY750H has a track width of 600 mm.

What are the excavation performance specifications of the Sany SY750H crawler excavator?

The Sany SY750H crawler excavator has a dredging depth of 7.605 meters, a maximum horizontal reach of 12.037 meters, and features a monobloc boom.

What is the tear-out force of the Sany SY750H?

The Sany SY750H has a tear-out force of 672 kN. No power rating data is available for this model in the source.

What is the bucket capacity of the Sany SY750H crawler excavator?

The Sany SY750H crawler excavator has a bucket capacity of 4.2 cubic meters.

How much is a Sany SY750H Crawler excavator (2018u20132025) worth?

The residual value of the Sany SY750H depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Sany SY750H overview

Engine

Selling Points

The superior performance ensures high efficiency and low fuel consumption by 10%. The large excavation site is specially designed for heavy-duty mining, providing excellent maneuverability. The ultra-long service life is achieved through a three-in-one test system, with a mining working condition design life exceeding 25,000 hours. Key components have a fatigue life of 40% longer than the industry standard, extending the life by 30%. The strong adaptability allows for optional 20 special working devices and a multi-stage filtration system to provide the best protection for the engine. The independent oil supply device ensures the best working efficiency. The ultra-low maintenance cost is achieved by ensuring that parts are interchangeable and maintenance is more affordable. The use of long-life products doubles the maintenance period and reduces costs by 50%.
