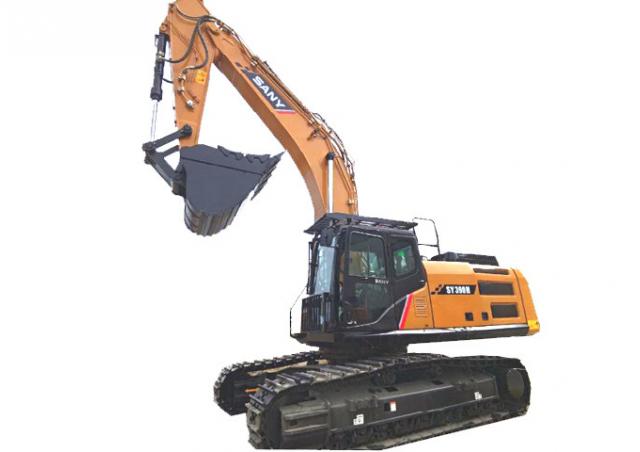

SY390H Sany excavator specs & Dimensions (2021 - 2026)

Sany SY390H is a crawler excavator manufactured since 2021. It has a weight of 40.15 tons and a track width of 699 mm. The transpo…

Sany SY390H is a crawler excavator manufactured since 2021. It has a weight of 40.15 tons and a track width of 699 mm. The transport dimensions are 11.432 meters in length, 3.19 meters in width, and 3.783 meters in height. The excavator features a tear-out force of 184 kN, a dredging depth of 7.473 meters, and a maximum horizontal reach of 11.022 meters.

Crawler Excavators Sany SY390H

Visit Sany live at

Technical specs - SY390H Sany

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
40.15 t
Transport length
11.43 m
Transport width
3.19 m
Transport height
3.78 m
Bucket capacity
1.9 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
11.022 m
Dredging depth
7.473 m
Tear-out force
184 kN
Model series
SY
Engine manuf.
Cummins
Engine type
QSL9
Engine power
252 kW
Displacement
9.8 l
Revolutions at max torque
2100 rpm
Max. torque
1526/1400 Nm
No. of cylinders
6
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Sany SY390H FAQ

When was the Sany SY390H manufactured?

The Sany SY390H was first produced in 2021.

How much does the Sany SY390H crawler excavator weigh?

The Sany SY390H crawler excavator weighs 40.15 tons.

What are the transport dimensions of the Sany SY390H crawler excavator?

The Sany SY390H has a transport length of 11.43 meters, a transport width of 3.19 meters, and a transport height of 3.78 meters.

What is the track width of the Sany SY390H's undercarriage?

The Sany SY390H has a track width of 600 mm.

What are the excavation performance specifications of the Sany SY390H crawler excavator?

The Sany SY390H crawler excavator has a dredging depth of 7.473 meters, a maximum horizontal reach of 11.022 meters, and features a monobloc boom.

What is the tear-out force of the Sany SY390H?

The Sany SY390H has a tear-out force of 184 kN.

What is the bucket capacity of the Sany SY390H excavator?

The Sany SY390H excavator has a bucket capacity of 1.9 cubic meters.

How much is a Sany SY390H Crawler excavator (2021u20132025) worth?

The residual value of the Sany SY390H depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
