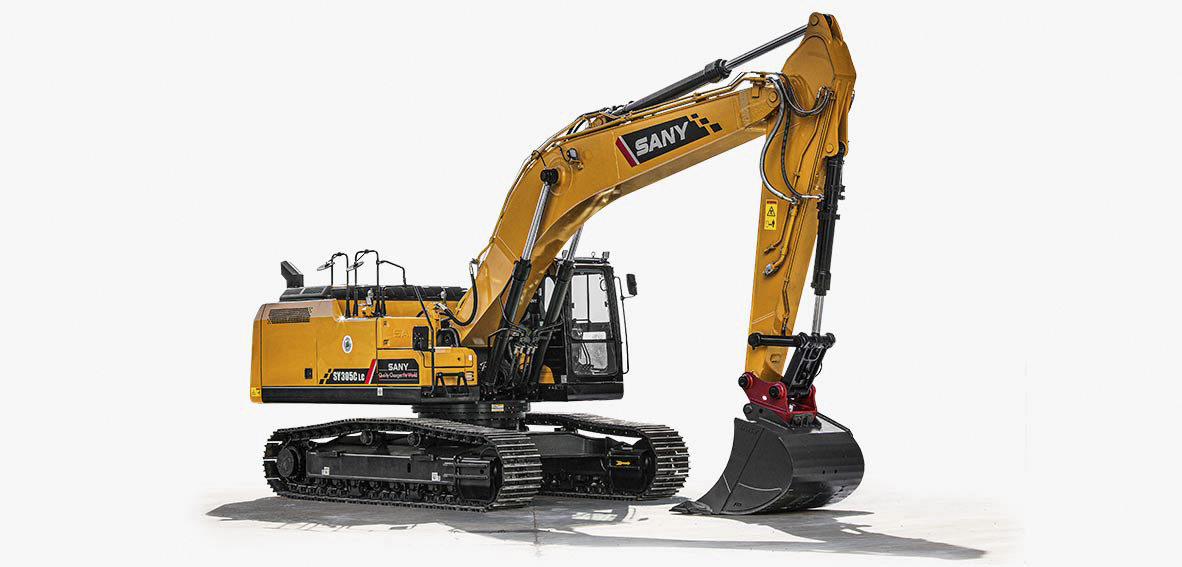

SY305C Sany excavator specs & Dimensions (2021 - 2026)

Sany SY305C is a crawler excavator manufactured since 2021. It has a weight of 32.265 tons and a track width of 600 mm. The transp…

Sany SY305C is a crawler excavator manufactured since 2021. It has a weight of 32.265 tons and a track width of 600 mm. The transport dimensions are 10.667 meters in length, 2.99 meters in width, and 3.28 meters in height. The machine features a tear-out force of 153 kN, a dredging depth of 6.815 meters, and a maximum horizontal reach of 10.87 meters. The bucket capacity is 1.7 cubic meters.

Crawler Excavators Sany SY305C

Visit Sany live at

Technical specs - SY305C Sany

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
32.265 t
Transport length
10.667 m
Transport width
2.99 m
Transport height
3.28 m
Bucket capacity
1.7 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.87 m
Dredging depth
6.815 m
Tear-out force
153 kN
Model series
SY
Engine manuf.
Cummins
Engine type
QSL9-C280
Engine power
209 kW
Displacement
8.9 l
Revolutions at max torque
2100 rpm
Max. torque
1472/1400 Nm
No. of cylinders
6
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Sany SY305C FAQ

When was the Sany SY305C manufactured?

The Sany SY305C was first produced in 2021.

How much does the Sany SY305C weigh?

The Sany SY305C weighs 32.27 tons.

What are the transport dimensions of the Sany SY305C crawler excavator?

The Sany SY305C has a transport length of 10.67 meters, a transport width of 2.99 meters, and a transport height of 3.28 meters.

What is the track width of the Sany SY305C's undercarriage?

The Sany SY305C has a track width of 600 mm.

What are the excavation performance specifications of the Sany SY305C crawler excavator?

The Sany SY305C crawler excavator has a dredging depth of 6.815 meters, a maximum horizontal reach of 10.87 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Sany SY305C crawler excavator?

The Sany SY305C crawler excavator has a tear-out force of 153 kN.

What is the bucket capacity of the Sany SY305C excavator?

The Sany SY305C excavator has a bucket capacity of 1.7 cubic meters.

How much is a Sany SY305C Crawler excavator (2021u20132025) worth?

The residual value of the Sany SY305C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
