PC800LC-8 Komatsu excavator specs & Dimensions (2020 - 2024)

Komatsu PC800LC-8 is a crawler excavator manufactured since 2020, with a weight of 81.9 tons. It features a track width of 710 mm,…

Komatsu PC800LC-8 is a crawler excavator manufactured since 2020, with a weight of 81.9 tons. It features a track width of 710 mm, a transport length of 13.995 meters, a transport width of 4.335 meters, and a transport height of 4.85 meters. The excavator has a tear-out force of 397.2 kN, a dredging depth of 8.445 meters, and a maximum horizontal reach of 13.66 meters. The bucket capacity ranges from a minimum of 3.93 m³ to a maximum of 5.6 m³, with a standard capacity of 3.4 m³. It is equipped with air conditioning as special equipment.

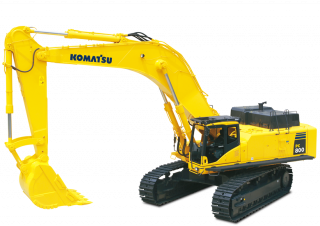

Crawler Excavators Komatsu PC800LC-8
Crawler Excavators Komatsu PC800LC-8
Crawler Excavators Komatsu PC800LC-8
Crawler Excavators Komatsu PC800LC-8

Visit Komatsu live at

Technical specs - PC800LC-8 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
81.9 t
Transport length
13.995 m
Transport width
4.335 m
Transport height
4.85 m
Bucket capacity
3.4 m³
Bucket capacity min.
3.93 m³
Bucket capacity max.
5.6 m³
Undercarriage
SL
Track width
710 mm
Boom
MB
Max. Reach horizontal
13.66 m
Dredging depth
8.445 m
Tear-out force
397.2 kN
Model series
PC
Engine manuf.
Komatsu
Engine type
SAA6D140E-5
Engine power
370 kW
Displacement
15.24 l
No. of cylinders
6
Cylinder bore x stroke
140x165 mm
Emission level
IIIA

More technical details, like: bucket width, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC800LC-8 FAQ

When was the Komatsu PC800LC-8 manufactured?

The Komatsu PC800LC-8 was manufactured from 2020 to 2024.

How much does the Komatsu PC800LC-8 weigh?

The Komatsu PC800LC-8 weighs 81.9 tons.

What are the transport dimensions of the Komatsu PC800LC-8?

The Komatsu PC800LC-8 has a transport length of 14 meters, a transport width of 4.34 meters, and a transport height of 4.85 meters.

What are the undercarriage specifications of the Komatsu PC800LC-8?

The Komatsu PC800LC-8 has a standard undercarriage with a track width of 710 mm.

What are the excavation performance specifications of the Komatsu PC800LC-8?

The Komatsu PC800LC-8 has a dredging depth of 8.445 meters, a maximum horizontal reach of 13.66 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Komatsu PC800LC-8?

The Komatsu PC800LC-8 has a tear-out force of 397.2 kN.

What are the bucket capacity specifications of the Komatsu PC800LC-8 excavator?

The Komatsu PC800LC-8 excavator has a nominal bucket capacity of 3.4 mu00b3, with a minimum capacity of 3.93 mu00b3 and a maximum capacity of 5.6 mu00b3.

How much is a Komatsu PC800LC-8 Crawler excavator (2020u20132024) worth?

The residual value of the Komatsu PC800LC-8 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
