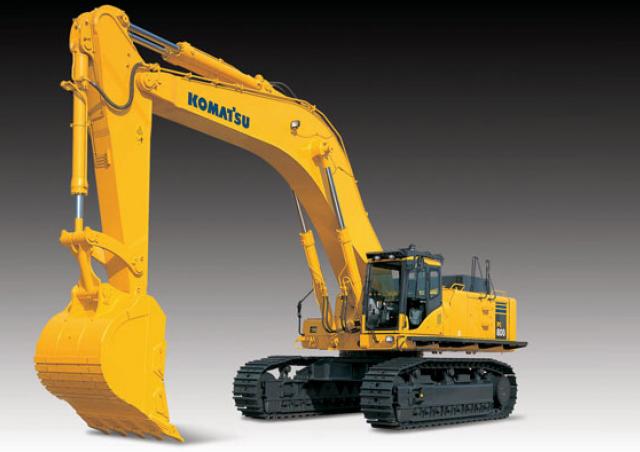

PC800-8R Komatsu excavator specs & Dimensions (2022 - 2026)

Komatsu PC800-8R is a crawler excavator manufactured since 2022. It has a weight of 77 tons and a track width of 610 mm. The trans…

Komatsu PC800-8R is a crawler excavator manufactured since 2022. It has a weight of 77 tons and a track width of 610 mm. The transport dimensions are 14.405 meters in length, 3.39 meters in width, and 4.69 meters in height. The excavator features a tear-out force of 333 kN, a dredging depth of 8.6 meters, and a maximum horizontal reach of 13.46 meters. The bucket width is 1.92 meters, with a capacity ranging from 2.8 m³ to 5.1 m³, and a standard capacity of 4.5 m³. Special equipment includes air conditioning and track adjustment.

Crawler Excavators Komatsu PC800-8R

Visit Komatsu live at

Technical specs - PC800-8R Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
77 t
Transport length
14.405 m
Transport width
3.39 m
Transport height
4.69 m
Bucket capacity
4.5 m³
Bucket capacity min.
2.8 m³
Bucket capacity max.
5.1 m³
Track width
610 mm
Max. Reach horizontal
13.46 m
Dredging depth
8.6 m
Tear-out force
333 kN
Bucket width
1.92 m
Model series
PC
Engine manuf.
Komatsu
Engine type
SAA6D140E-5
Engine power
363 kW
Displacement
15.24 l
Revolutions at max torque
1800 rpm
No. of cylinders
6
Cylinder bore x stroke
140x165 mm
Emission level
Tier 3

More technical details, like: undercarriage, boom, dimension lxwxh, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC800-8R FAQ

When was the Komatsu PC800-8R manufactured?

The Komatsu PC800-8R was first produced in 2022.

How much does the Komatsu PC800-8R weigh?

The Komatsu PC800-8R weighs 77 tons.

What are the transport dimensions of the Komatsu PC800-8R?

The Komatsu PC800-8R has a transport length of 14.41 meters, a transport width of 3.39 meters, and a transport height of 4.69 meters.

What is the track width of the Komatsu PC800-8R's undercarriage?

The Komatsu PC800-8R has a track width of 610 mm.

What are the excavation performance specifications of the Komatsu PC800-8R?

The Komatsu PC800-8R has a dredging depth of 8.6 meters and a maximum horizontal reach of 13.46 meters.

What is the tear-out force of the Komatsu PC800-8R?

The Komatsu PC800-8R has a tear-out force of 333 kN.

What are the bucket specifications of the Komatsu PC800-8R crawler excavator?

The Komatsu PC800-8R has a bucket capacity of 4.5 mu00b3, with a maximum capacity of 5.1 mu00b3 and a minimum capacity of 2.8 mu00b3, and a bucket width of 1.92 meters.

How much is a Komatsu PC800-8R Crawler excavator (2022u20132025) worth?

The residual value of the Komatsu PC800-8R depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
