PC800-8 E0 Komatsu excavator specs & Dimensions (2008 - 2018)

Model rating
10,00 / 10

Komatsu PC800-8 E0 is a crawler excavator manufactured from 2008 to 2018. It has a weight of 79.7 tons and a track width of 600 mm…

Komatsu PC800-8 E0 is a crawler excavator manufactured from 2008 to 2018. It has a weight of 79.7 tons and a track width of 600 mm. The transport dimensions are 13.995 meters in length, 4.335 meters in width, and 4.85 meters in height. The machine features a tear-out force of 304 kN, a dredging depth of 7.13 meters, and a maximum horizontal reach of 11.945 meters. Special equipment includes air conditioning, overload alert, and track adjustment.

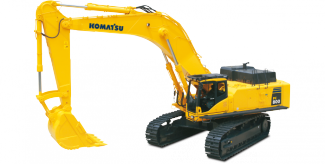

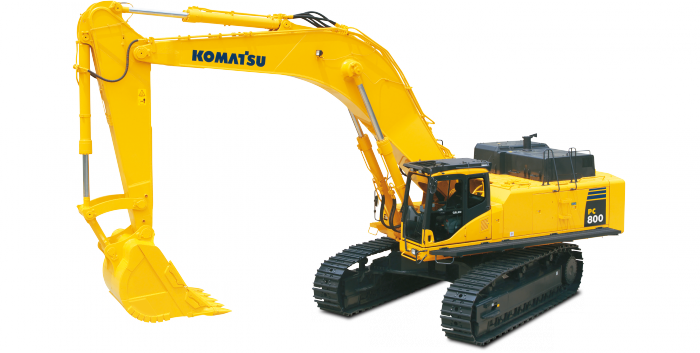

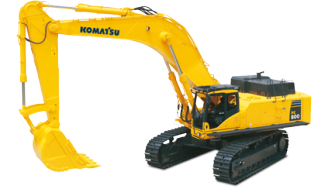

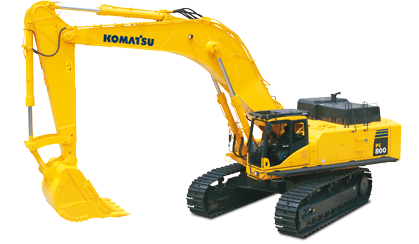

Crawler Excavators Komatsu PC800-8 E0
Crawler Excavators Komatsu PC800-8 E0
Crawler Excavators Komatsu PC800-8 E0
Crawler Excavators Komatsu PC800-8 E0
Crawler Excavators Komatsu PC800-8 E0
Crawler Excavators Komatsu PC800-8 E0
Crawler Excavators Komatsu PC800-8 E0
Crawler Excavators Komatsu PC800-8 E0

Visit Komatsu live at

Technical specs - PC800-8 E0 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
79.7 t
Transport length
13.995 m
Transport width
4.335 m
Transport height
4.85 m
Bucket capacity
5.31 m³
Undercarriage
HD
Track width
600 mm
Boom
MB
Max. Reach horizontal
11.945 m
Dredging depth
7.13 m
Tear-out force
304 kN
Model series
PC
Engine manuf.
Komatsu
Engine type
SAA6D140E
Engine power
363 kW
Displacement
15.24 l
Revolutions at max torque
1800 rpm
No. of cylinders
6
Cylinder bore x stroke
140 x 165 mm
Emission level
Stage IIIA

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Buy full specs

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC800-8 E0 FAQ

When was the Komatsu PC800-8 E0 manufactured?

The Komatsu PC800-8 E0 was manufactured from 2008 to 2018.

How much does the Komatsu PC800-8 E0 weigh?

The Komatsu PC800-8 E0 weighs 79.7 tons.

What are the transport dimensions of the Komatsu PC800-8 E0?

The Komatsu PC800-8 E0 has a transport length of 14 meters, a transport width of 4.34 meters, and a transport height of 4.85 meters.

What are the undercarriage specifications of the Komatsu PC800-8 E0?

The Komatsu PC800-8 E0 has a heavy duty undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Komatsu PC800-8 E0?

The Komatsu PC800-8 E0 has a dredging depth of 7.13 meters, a maximum horizontal reach of 11.945 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Komatsu PC800-8 E0?

The Komatsu PC800-8 E0 has a tear-out force of 304 kN.

What is the bucket capacity of the Komatsu PC800-8 E0 excavator?

The bucket capacity of the Komatsu PC800-8 E0 excavator is 5.31 cubic meters.

How much is a Komatsu PC800-8 E0 Crawler excavator (2008u20132018) worth?

The residual value of the Komatsu PC800-8 E0 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
