PC750-6 Komatsu excavator specs & Dimensions (1996 - 2003)

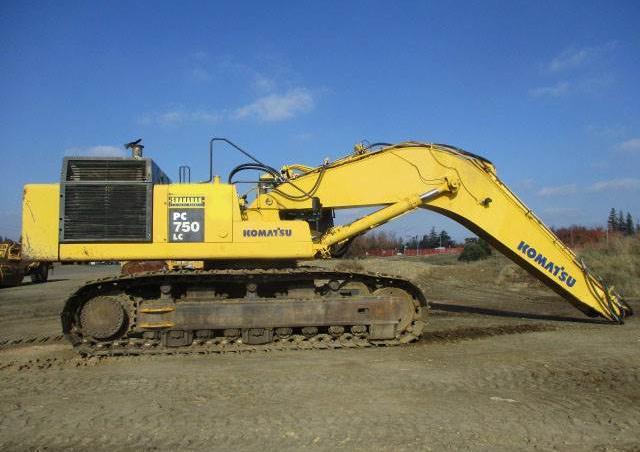

Komatsu PC750-6 is a Crawler Excavator manufactured from 1996 to 2003. It has a weight of 80.222 tons and a track width of 610 mm.…

Komatsu PC750-6 is a Crawler Excavator manufactured from 1996 to 2003. It has a weight of 80.222 tons and a track width of 610 mm. The transport dimensions are 13.82 meters in length, 3.39 meters in width, and 3.495 meters in height. The dredging depth is 7.015 meters, with a maximum horizontal reach of 11.865 meters. The bucket width is 1.676 meters, and the bucket capacity is 4.01 cubic meters.

Crawler Excavators Komatsu PC750-6

Visit Komatsu live at

Technical specs - PC750-6 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
80.222 t
Transport length
13.82 m
Transport width
3.39 m
Transport height
3.495 m
Bucket capacity
4.01 m³
Undercarriage
SL
Track width
610 mm
Boom
MB
Max. Reach horizontal
11.865 m
Dredging depth
7.015 m
Bucket width
1.676 m
Model series
PC
Engine manuf.
Komatsu
Engine type
SAA6D140E-2
Engine power
331 kW
Displacement
15.24 l
Revolutions at max torque
1800 rpm
No. of cylinders
6
Cylinder bore x stroke
140x165 mm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC750-6 FAQ

When was the Komatsu PC750-6 manufactured?

The Komatsu PC750-6 was manufactured from 1996 to 2003.

How much does the Komatsu PC750-6 weigh?

The Komatsu PC750-6 weighs 80.22 tons.

What are the transport dimensions of the Komatsu PC750-6?

The Komatsu PC750-6 has a transport length of 13.82 meters, a transport width of 3.39 meters, and a transport height of 3.5 meters.

What are the undercarriage specifications of the Komatsu PC750-6?

The Komatsu PC750-6 has a standard undercarriage with a track width of 610 mm.

What are the excavation performance specifications of the Komatsu PC750-6?

The Komatsu PC750-6 has a dredging depth of 7.015 meters, a maximum horizontal reach of 11.865 meters, and is equipped with a monobloc boom.

What are the bucket specifications of the Komatsu PC750-6 excavator?

The Komatsu PC750-6 excavator has a bucket capacity of 4.01 cubic meters and a bucket width of 1.676 meters.

How much is a Komatsu PC750-6 Crawler excavator (1996u20132003) worth?

The residual value of the Komatsu PC750-6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Komatsu PC750-6 overview

Komatsu PC750-6 features overview

Introduction

With the introduction of the PC750, Komatsu has brought the field-proven performance of the Avance Dash 6 series to the 80 ton excavator class. By combining unrivaled control with outstanding productivity, Komatsu continues the tradition of setting new industry standards. Together, these features make the PC750 the most productive excavator in its class. For the operator, the PC750 combines the following features: Low noise design Spacious cab Easy routine maintenance New controls for boom vibration Unrivaled control New safety features.


Hydraulic and electronic system

Backhoe Range & Bucket/Arm Combination

Working Range Max. cutting height Max. dumping height Max. digging depth Max. digging reach Max. digging reach at ground level Level crowding distance Reach at max. dumping height Arm crowd force


Upper Structure

Operation

WORKING MODE SELECTION The Avance excavator is equipped with three working modes. Each mode is designed to match engine speed, pump speed and system pressure to the current application. TRAVEL SPEEDS The Avance excavator is equipped with two travel speeds to provide smooth, efficient travel around the job site. SWING ACCEL The swing accel function is designed to control boom and swing speeds to provide optimum responses for different loading angles. As a result, operators can use the same easy motion for 180° loading as they do for 90° loading.


Cab

Comfortable Cab

The Avance cab interior is 14% more spacious than the Dash 5 series and provides a comfortable working environment. Ergonomically designed seat, inclined dashboard, rotating monitor dashboard, cab-frame mounted wiper motor, excellent visibility, adjustable control levers, and low noise.


Controls

The multiple position, pressure proportional control levers allow the operator to work comfortably while maintaining accuracy. A double slide mechanism permits the seat and controllers to move simultaneously or independently, allowing the operator to position the controllers for maximum comfort. The multi-position monitor is easily accessible and can be rotated to remove any glare. In addition, the angled dashboard makes the switches and fuel control dials easier to view and use.
