PC600LC-6 Komatsu excavator specs & Dimensions (2000 - 2007)

Komatsu PC600LC-6 is a crawler excavator manufactured from 2000 to 2007, with a weight of 60.4 tons. It features a track width of …

Komatsu PC600LC-6 is a crawler excavator manufactured from 2000 to 2007, with a weight of 60.4 tons. It features a track width of 900 mm, a transport length of 12.81 meters, a transport width of 4.05 meters, and a transport height of 3.31 meters. The machine has a dredging depth of 10.255 meters and a maximum horizontal reach of 14.435 meters. The bucket width is 1.626 meters, and the bucket capacity is 3.25 cubic meters.

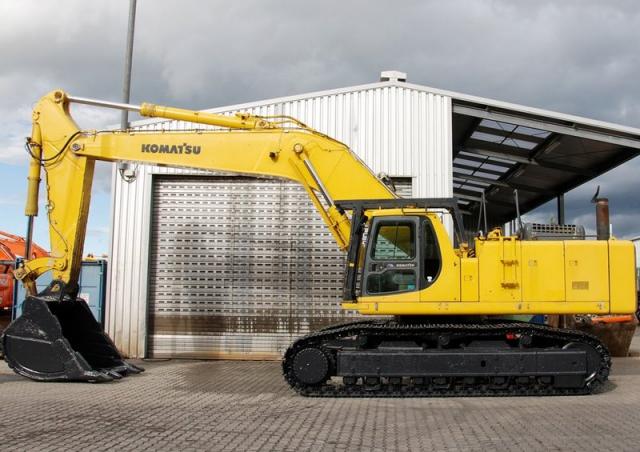

Crawler Excavators Komatsu PC600LC-6

Visit Komatsu live at

Technical specs - PC600LC-6 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
60.4 t
Transport length
12.81 m
Transport width
4.05 m
Transport height
3.31 m
Bucket capacity
3.25 m³
Undercarriage
LC
Track width
900 mm
Boom
MB
Max. Reach horizontal
14.435 m
Dredging depth
10.255 m
Bucket width
1.626 m
Model series
PC
Engine manuf.
Komatsu
Engine type
N14
Engine power
286 kW
Displacement
14.04 l
Revolutions at max torque
1800 rpm
No. of cylinders
6
Cylinder bore x stroke
140x152 mm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC600LC-6 FAQ

When was the Komatsu PC600LC-6 manufactured?

The Komatsu PC600LC-6 was manufactured from 2000 to 2007.

How much does the Komatsu PC600LC-6 weigh?

The Komatsu PC600LC-6 weighs 60.4 tons.

What are the transport dimensions of the Komatsu PC600LC-6?

The Komatsu PC600LC-6 has a transport length of 12.81 meters, a transport width of 4.05 meters, and a transport height of 3.31 meters.

What are the undercarriage specifications of the Komatsu PC600LC-6?

The Komatsu PC600LC-6 has a long undercarriage with a track width of 900 mm.

What are the excavation performance specifications of the Komatsu PC600LC-6?

The Komatsu PC600LC-6 has a dredging depth of 10.255 meters, a maximum horizontal reach of 14.435 meters, and is equipped with a monobloc boom.

What are the specifications of the primary work tool bucket on the Komatsu PC600LC-6?

The primary work tool bucket of the Komatsu PC600LC-6 has a capacity of 3.25 cubic meters and a width of 1.626 meters.

How much is a Komatsu PC600LC-6 Crawler excavator (2000u20132007) worth?

The residual value of the Komatsu PC600LC-6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
