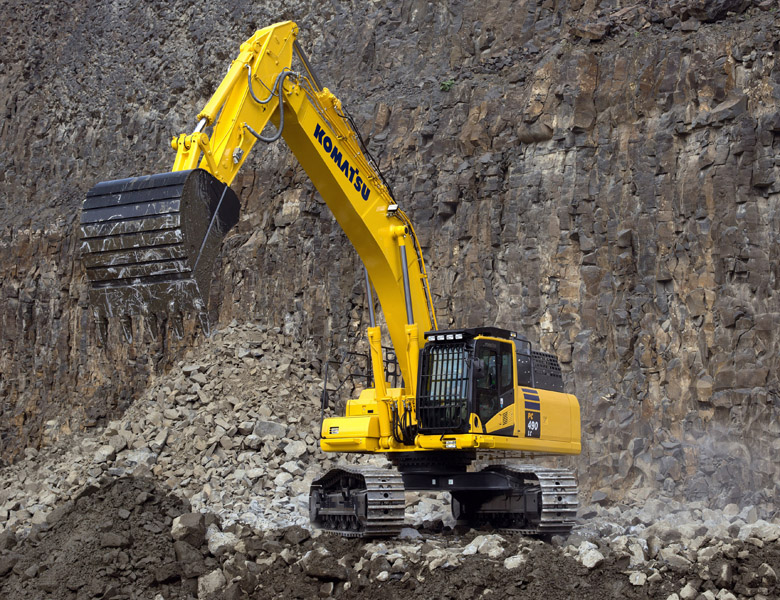

PC490LC-11E0 Komatsu excavator specs & Dimensions (2021 - 2026)

Low-noise design

Komatsu crawler excavators have very low external noise levels and are especially well-suited for work in confined spaces or urban areas. The optimal usage of sound insulation and of sound absorbing materials helps to make noise levels inside the cab comparable to those of an executive car.

An evolutionary interface

Helpful information is now easier than ever to find and understand with the upgraded monitor interface. An optimal main screen for the ongoing work can be selected simply by pressing the F3 key.

KomVision

KomVision machine visibility gives the operator a constant clear view of the safety zone around the machine. This allows the operator to focus on the work at hand even in low light conditions.

Komatsu fuel-saving technology

Fuel consumption on the PC490/LC-11 is lower by up to 11%. Engine management is enhanced. The variable speed matching of the engine and hydraulic pumps guarantee efficiency and precision during single and combined movements.

Adjustable idle shutdown

The Komatsu auto idle shutdown automatically turns off the engine after it idles for a set period of time. This feature can easily be programmed from 5 to 60 minutes, to reduce unnecessary fuel consumption and exhaust emissions, and to lower operating costs. An Eco-gauge and the Eco guidance tips on the cab monitor further encourage efficient operations.

Lower operating costs

Komatsu ICT contributes to the reduction of operating costs by assisting to comfortably and efficiently manage operations. It raises the level of customer satisfaction and the competitive edge of our products.

Engine specifications

Komatsu SAA6D125E-7 turbocharged common rail direct injection diesel engine EU Stage V compliant. Remote hydraulically driven, variable speed, reversible cooling fan. Automatic engine warm-up system. Engine overheat prevention system. Fuel control dial. Auto-deceleration function. Adjustable idle shutdown. Engine key stop. Engine ignition can be password secured on request. Alternator 24 V/90 A. Starter motor 24 V/11 kW. Batteries 2 x 12 V/180 Ah.

Large digging force

The two boom mode settings provide a “power” mode for a more effective excavating digging force and a “smooth” mode for gathering material and for fine grading operations. Pressing the PowerMax function button temporarily gives the PC490/LC-11’s digging force a further boost.

Built-in versatility

Powerful and precise, the Komatsu PC490/LC-11 is equipped to efficiently carry out any task your business requires. On all jobsites, big or small, for digging, trenching, landscaping or site preparation, the Komatsu hydraulic system always provides maximum productivity and control.

6 working modes

The PC490/LC-11 delivers the power required with the lowest fuel usage. 6 working modes are available: Power, Lifting/Fine Operation, Breaker, Economy, Attachment Power and Attachment Economy. The operator can ideally balance the Economy mode between power and economy to match the work at hand. The oil flow delivered to hydraulic attachments is also adjustable directly on the class-leading widescreen monitor panel.

Long-life oil filters

The Komatsu Genuine hydraulic oil filter uses high-performance filtering material for long replacement intervals, which significantly reduces maintenance costs.

Hydraulic system

Electronic closed-centre load sensing (E-CLSS) hydraulic system (HydrauMind) Pump and engine mutual control (PEMC) system 6-working mode selection system: Power mode, Economy mode, Breaker mode, Attachment Power and Attachment Economy mode, and Lifting/Fine Operation mode PowerMax function PPC wrist control levers for arm, boom, bucket and swing, with sliding proportional control for attachments and 3 auxiliary buttons Two-mode boom control Prepared for hydraulic quick-coupler Additional hydraulic functions Komatsu Integrated Attachment Control (KAIC)

A wide choice of options

Two optional attachment lines are available and 15 attachment memory settings are simply customised. Combined with a standard-fit hydraulic quick coupler power circuit, it’s easier than ever to switch working styles. For tougher loading applications, the lift capacity and productivity of the PC490/LC-11 can be further enhanced with a short 6,7 m boom, double grouser track shoes, full length track roller guards and an OPG top and a front guard.

Undercarriage

Track roller guards, track frame under-guards, 600, 700, 800, 900 mm triple grouser shoes, 600 mm double grouser shoes, and full length track roller guards.

Widescreen monitor

Conveniently customisable and with a choice of 26 languages, the widescreen monitor with simple switches and multifunction keys gives fingertip access to a large range of functions and operating info. The rear camera view and an AdBlue level gauge are now incorporated into the default main screen.

Increased comfort

In the wide Komatsu SpaceCab™, a standard air-suspended high-back seat, heated for improved comfort and with fully adjustable armrests, is the centre of a comfortable and low-fatigue working environment. High visibility and ergonomic controls further assist to maximise the operator’s productivity.

Perfect operator convenience

In addition to the standard radio, the PC490/LC-11 has an auxiliary input for connecting external devices and play music through the cab speakers. Two 12-volt power ports are also incorporated in the cab. Proportional controls are fitted as standard for safe and precise operation of attachments.

Komatsu SpaceCab™

The ROPS cab has a tubular steel frame and provides high shock absorbency, impact resistance and durability. The seat belt is well designed to keep the operator in the safety zone of the cab in the event of a rollover. Optionally the cab can be fitted with a Falling Object Protective System (FOPS) with openable front guard.

Cabin

Reinforced safety SpaceCab™; highly pressurised and tightly sealed HPRC viscous mounted cab with tinted safety glass windows, large roof window with sun shade, pull-up type front window with locking device, removable lower window, front window wiper with intermittent feature, sun roller blind, cigarette lighter, ashtray, luggage shelf, floor mat Heated, high-back air-suspended seat with lumbar support, console mounted height adjustable arm rests, and retractable seat belt Automatic climate control system 12/24 Volt power supplies Beverage holder and magazine rack Hot and cool box Radio (AM/FM) Auxiliary input (MP3 jack) Lower wiper Rain visor (not with OPG) DAB+ digital radio w. auxiliary input (MP3 jack)

Safe maintenance

Thermal guards around high temperature areas of the engine, protected fan belt and pulleys, a pump/engine partition that prevents hydraulic oil from spraying onto the engine, and exceptionally sturdy handrails: in Komatsu tradition, the highest safety level is provided for a fast and smooth maintenance.

Drives and brakes

Hydrostatic, 3-speed travel system with automatic shift and planetary gear type final drives, and hydraulic travel and parking brakes PPC control levers and pedals for steering and travel.

Safety equipment

KomVision surround view system, electric horn, overload warning device, audible travel alarm, boom safety valves, large handrails, rear-view mirrors, battery main switch, ROPS compliant to ISO 12117-2:2008, emergency engine stop switch, seat belt caution indicator, neutral position detection system, arm safety valve, OPG Level II front guard (FOPS), hinged type OPG Level II top guard (FOPS).

Service and maintenance

Automatic fuel line de-aeration, double element type air cleaner with dust indicator and auto dust evacuator, KOMTRAX™ – Komatsu wireless monitoring system (3G), Komatsu CARE™ – a maintenance program for Komatsu customers, multifunction video compatible colour monitor with Equipment Management and Monitoring System (EMMS) and efficiency guidance, toolkit, service points, and automatic greasing system.

Other equipment

Standard counterweight, remote greasing for swing circle and pins, electric refuelling pump with automatic shut-off function, biodegradable oil for hydraulic system, customised paint, and further equipment on request.
