PC400LC-6 Komatsu excavator specs & Dimensions (1996 - 2003)

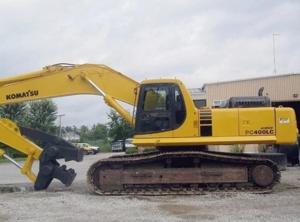

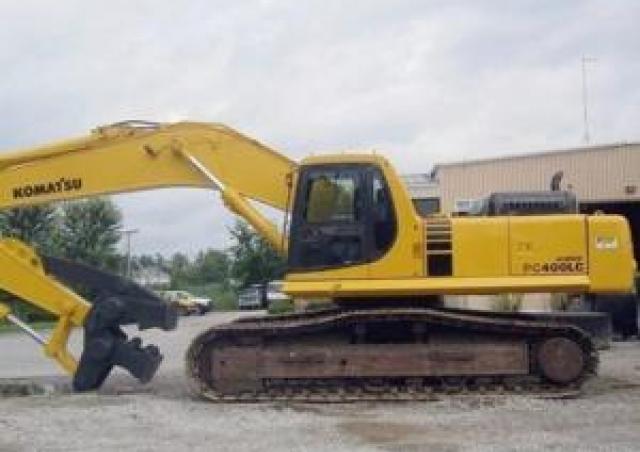

Komatsu PC400LC-6 is a Crawler Excavator manufactured from 1996 to 2003. It has a weight of 45.074 tons and a track width of 700 m…

Komatsu PC400LC-6 is a Crawler Excavator manufactured from 1996 to 2003. It has a weight of 45.074 tons and a track width of 700 mm. The transport dimensions are 11.915 meters in length, 3.44 meters in width, and 3.265 meters in height. The dredging depth is 9.195 meters, with a maximum horizontal reach of 13.165 meters. The bucket width is 1.524 meters, and the bucket capacity is 2.68 cubic meters.

Crawler Excavators Komatsu PC400LC-6

Visit Komatsu live at

Technical specs - PC400LC-6 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
45.074 t
Transport length
11.915 m
Transport width
3.44 m
Transport height
3.265 m
Bucket capacity
2.68 m³
Undercarriage
LC
Track width
700 mm
Boom
MB
Max. Reach horizontal
13.165 m
Dredging depth
9.195 m
Bucket width
1.524 m
Model series
PC
Engine manuf.
Komatsu
Engine type
M11
Engine power
238.6 kW
Displacement
10.8 l
Revolutions at max torque
2000 rpm
No. of cylinders
6
Cylinder bore x stroke
125x147 mm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC400LC-6 FAQ

When was the Komatsu PC400LC-6 manufactured?

The Komatsu PC400LC-6 was manufactured from 1996 to 2003.

How much does the Komatsu PC400LC-6 weigh?

The Komatsu PC400LC-6 weighs 45.07 tons.

What are the transport dimensions of the Komatsu PC400LC-6?

The Komatsu PC400LC-6 has a transport length of 11.92 meters, a transport width of 3.44 meters, and a transport height of 3.27 meters.

What are the undercarriage specifications of the Komatsu PC400LC-6?

The Komatsu PC400LC-6 has a long undercarriage and a track width of 700 mm.

What are the excavation performance specifications of the Komatsu PC400LC-6?

The Komatsu PC400LC-6 has a dredging depth of 9.195 meters, a maximum horizontal reach of 13.165 meters, and is equipped with a Monobloc boom.

What are the specifications of the primary work tool bucket on the Komatsu PC400LC-6?

The primary work tool bucket of the Komatsu PC400LC-6 has a capacity of 2.68 cubic meters and a width of 1.524 meters.

How much is a Komatsu PC400LC-6 Crawler excavator (1996u20132003) worth?

The residual value of the Komatsu PC400LC-6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
