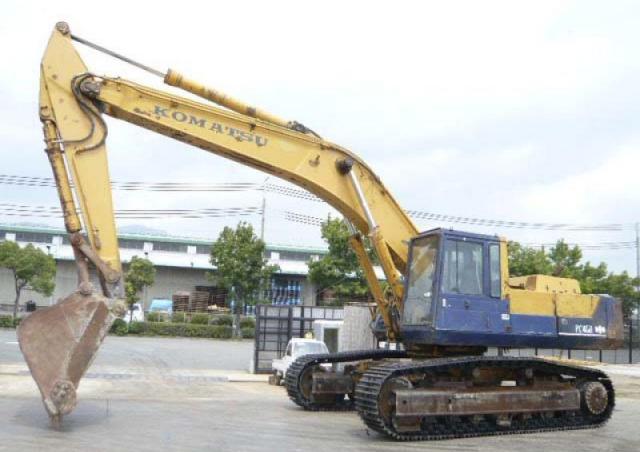

PC400LC-3 Komatsu excavator specs & Dimensions (1987 - 1994)

Komatsu PC400LC-3 is a Crawler Excavator manufactured from 1987 to 1994. It has a weight of 42 tons and a track width of 710 mm. T…

Komatsu PC400LC-3 is a Crawler Excavator manufactured from 1987 to 1994. It has a weight of 42 tons and a track width of 710 mm. The transport dimensions are 11.72 meters in length, 3.09 meters in width, and 3.22 meters in height. The dredging depth is 9.19 meters, with a maximum horizontal reach of 13.17 meters. The bucket width is 1.66 meters, and the bucket capacity is 2.24 cubic meters.

Crawler Excavators Komatsu PC400LC-3

Visit Komatsu live at

Technical specs - PC400LC-3 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
42 t
Transport length
11.72 m
Transport width
3.09 m
Transport height
3.22 m
Bucket capacity
2.24 m³
Undercarriage
LC
Track width
710 mm
Boom
MB
Max. Reach horizontal
13.17 m
Dredging depth
9.19 m
Bucket width
1.66 m
Model series
PC
Engine manuf.
Komatsu
Engine type
S6D125
Engine power
199 kW
Displacement
11.05 l
Revolutions at max torque
2000 rpm
No. of cylinders
6
Cylinder bore x stroke
125x150 mm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC400LC-3 FAQ

When was the Komatsu PC400LC-3 manufactured?

The Komatsu PC400LC-3 was manufactured from 1987 to 1994.

How much does the Komatsu PC400LC-3 weigh?

The Komatsu PC400LC-3 weighs 42 tons.

What are the transport dimensions of the Komatsu PC400LC-3?

The Komatsu PC400LC-3 has a transport length of 11.72 meters, a transport width of 3.09 meters, and a transport height of 3.22 meters.

What are the undercarriage specifications of the Komatsu PC400LC-3?

The Komatsu PC400LC-3 has a long undercarriage and a track width of 710 mm.

What are the excavation performance specifications of the Komatsu PC400LC-3?

The Komatsu PC400LC-3 has a dredging depth of 9.19 meters, a maximum horizontal reach of 13.17 meters, and is equipped with a monobloc boom.

What are the bucket specifications of the Komatsu PC400LC-3 crawler excavator?

The Komatsu PC400LC-3 has a bucket capacity of 2.24 cubic meters and a bucket width of 1.66 meters.

How much is a Komatsu PC400LC-3 Crawler excavator (1987u20131994) worth?

The residual value of the Komatsu PC400LC-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
