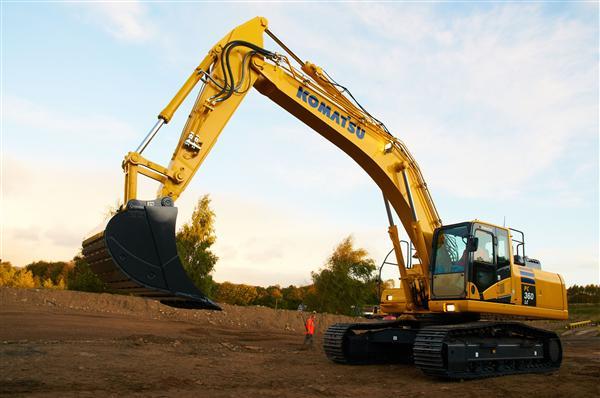

    Komatsu PC360NLC-10 excavator specs (2012 - 2016)

    Rate this machine now!

    Komatsu is the manufacturer of the crawler excavator model PC 360 NLC 10. Find and download detailed specs and data sheets for thi... Read more

    Komatsu is the manufacturer of the crawler excavator model PC 360 NLC 10. Find and download detailed specs and data sheets for this machine here.

    This crawler excavator is built to provide up to 202kW or 270 horse power, delivered from its powerful Komatsu engine to the 35.49t PC 360 NLC 10 machine. The PC 360 NLC 10 is categorised in the biggest machine segment in the crawler excavators category. The model's dimensions are 11.14m x 2.99m x 3.28m. The bucket capacity of PC 360 NLC 10 is 2,66m³, which is above average for this type of machine.

    The Komatsu PC 360 NLC 10 has been equipped and sold with Aircondition and Overload alert. It does not include Track adaption, Cabin adjustment and Diesel particulate filter. There are more detailed specifications and machine descriptions available in the original Komatsu PC 360 NLC 10 specs data sheet. Download a free data sheet in Polish, Swedish, Dutch, French, Italian, Norwegian, Czech, Portuguese, German, English and Spanish from LECTURA Specs.

    This model can be acquired for a list price between €374000 and €476000. Production of the PC 360 NLC 10 stopped in 2016. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

    At present, 31 other crawler excavators, which range from 7.5t up to 83.4t are produced by Komatsu. Of these, PC 700 LC 8 E0, PC 80 MR 3 and also PC 360 LC 10 are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest Komatsu PC 360 NLC 10 specs data sheet on LECTURA Specs today!

    Technical specs - PC360NLC-10 Komatsu


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 35.49 t
    • Transport length 11.14 m
    • Transport width 2.99 m
    • Transport height 3.28 m
    • Bucket capacity 2,66 m³
    • Undercarriage NLC
    • Track width 600 mm
    • Boom MB
    • Max. Reach horizontal 11,1 m
    • Dredging depth 7,38 m
    • Engine manuf. Komatsu
    • Engine type SAA6D114E-5
    • Engine power 192 kW
    • Displacement 8.85 l
    • Revolutions at max torque 1950 rpm
    • No. of cylinders 6
    • Cylinder bore x stroke 114 × 144,5 mm
    • Emission level Stage IIIB

    More technical details, like: bucket capacity min., bucket capacity max., tear-out force, bucket width, dimension lxwxh, max. torque are available in the full technical specs.

    Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

    Special equipment

    • Diesel particulate filter
    • Track adjustment
    • Blade
    • Cabin adjustment
    • Overload alert
    • Material Handling Excavator
    • Aircondition
    • Quick hitch hydr.
    • Quick hitch mech.
