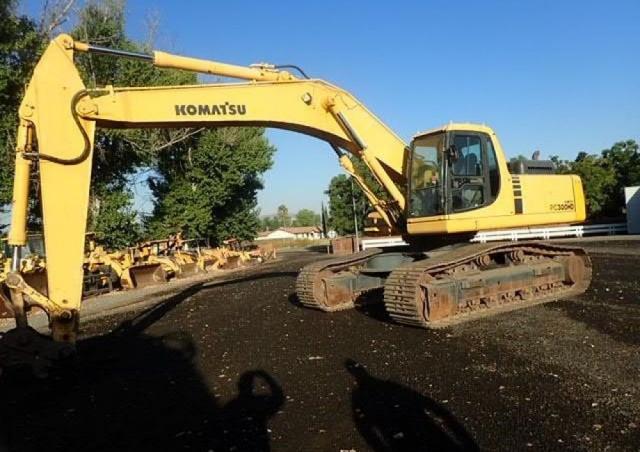

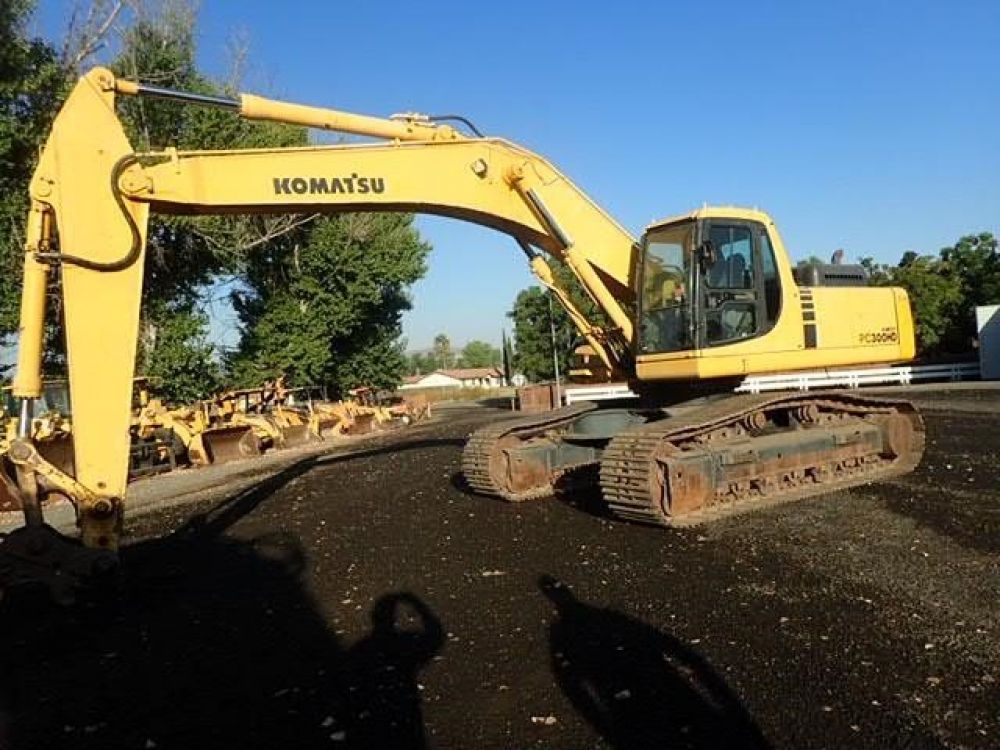

PC300HD-6 Komatsu excavator specs & Dimensions (1996 - 2003)

Komatsu PC300HD-6 is a crawler excavator manufactured from 1996 to 2003, with a weight of 36.63 tons. It features a track width of…

Komatsu PC300HD-6 is a crawler excavator manufactured from 1996 to 2003, with a weight of 36.63 tons. It features a track width of 700 mm, a transport length of 11.005 meters, a transport width of 3.57 meters, and a transport height of 3.365 meters. The machine has a dredging depth of 7.25 meters and a maximum horizontal reach of 10.87 meters. The bucket width is 1.372 meters, and the bucket capacity is 1.62 cubic meters.

Crawler Excavators Komatsu PC300HD-6

Visit Komatsu live at

Technical specs - PC300HD-6 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
36.63 t
Transport length
11.005 m
Transport width
3.57 m
Transport height
3.365 m
Bucket capacity
1.62 m³
Undercarriage
HD
Track width
700 mm
Boom
MB
Max. Reach horizontal
10.87 m
Dredging depth
7.25 m
Bucket width
1.372 m
Model series
PC
Engine manuf.
Komatsu
Engine type
SA6D114E-1
Engine power
171.5 kW
Displacement
8.13 l
Revolutions at max torque
2000 rpm
No. of cylinders
6
Cylinder bore x stroke
114x135 mm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC300HD-6 FAQ

When was the Komatsu PC300HD-6 manufactured?

The Komatsu PC300HD-6 was manufactured from 1996 to 2003.

How much does the Komatsu PC300HD-6 weigh?

The Komatsu PC300HD-6 weighs 36.63 tons.

What are the transport dimensions of the Komatsu PC300HD-6?

The Komatsu PC300HD-6 has a transport length of 11.01 meters, a transport width of 3.57 meters, and a transport height of 3.37 meters.

What are the undercarriage specifications of the Komatsu PC300HD-6?

The Komatsu PC300HD-6 has a heavy duty undercarriage with a track width of 700 mm.

What are the excavation performance specifications of the Komatsu PC300HD-6?

The Komatsu PC300HD-6 has a dredging depth of 7.25 meters, a maximum horizontal reach of 10.87 meters, and features a monobloc boom.

What are the bucket specifications of the Komatsu PC300HD-6 excavator?

The Komatsu PC300HD-6 excavator has a bucket capacity of 1.62 cubic meters and a bucket width of 1.372 meters.

How much is a Komatsu PC300HD-6 Crawler excavator (1996u20132003) worth?

The residual value of the Komatsu PC300HD-6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
