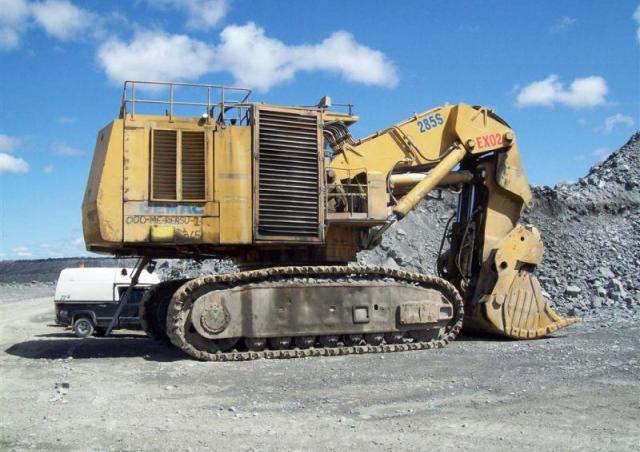

H285S Komatsu excavator specs & Dimensions (1998 - 2005)

Komatsu H285S is a crawler excavator manufactured from 1998 to 2005, with a weight of 335 tons. It features a track width of 1200 …

Komatsu H285S is a crawler excavator manufactured from 1998 to 2005, with a weight of 335 tons. It features a track width of 1200 mm, a transport length of 8.37 meters, a transport width of 6.75 meters, and a transport height of 7.81 meters. The excavator has a tear-out force of 1200 kN, a dredging depth of 3.5 meters, and a maximum horizontal reach of 14 meters. The bucket width is 4 meters, and the bucket capacity is 22.8 cubic meters.

Crawler Excavators Komatsu H285S

Visit Komatsu live at

Technical specs - H285S Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
335 t
Transport length
8.37 m
Transport width
6.75 m
Transport height
7.81 m
Bucket capacity
22.8 m³
Undercarriage
LCV
Track width
1200 mm
Boom
MB
Max. Reach horizontal
14 m
Dredging depth
3.5 m
Tear-out force
1200 kN
Bucket width
4 m
Model series
H
Engine manuf.
Komatsu
Engine type
K2000E
Engine power
1250 kW
Displacement
50 l
Revolutions at max torque
1800 rpm
No. of cylinders
16
Cylinder bore x stroke
159x159 mm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu H285S FAQ

When was the Komatsu H285S manufactured?

The Komatsu H285S was manufactured from 1998 to 2005.

How much does the Komatsu H285S weigh?

The Komatsu H285S weighs 335 metric tons.

What are the transport dimensions of the Komatsu H285S?

The Komatsu H285S has a transport length of 8.37 meters, a transport width of 6.75 meters, and a transport height of 7.81 meters.

What are the undercarriage specifications of the Komatsu H285S?

The Komatsu H285S has a long undercarriage that is hydraulically extendable and features a track width of 1200 mm.

What are the excavation performance specifications of the Komatsu H285S?

The Komatsu H285S has a dredging depth of 3.5 meters, a maximum horizontal reach of 14 meters, and features a monobloc boom.

What is the tear-out force of the Komatsu H285S?

The Komatsu H285S has a tear-out force of 1200 kN.

What are the specifications of the primary work tool bucket on the Komatsu H285S?

The primary work tool bucket of the Komatsu H285S has a capacity of 22.8 cubic meters and a width of 4 meters.

How much is a Komatsu H285S Crawler excavator (1998u20132005) worth?

The residual value of the Komatsu H285S depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Komatsu H285S overview

Hydraulic and electronic system

Hydraulic System

The powertrain consists of a main drive, gearbox, and four identical pumps which deliver hydraulic oil from the unpressurized hydraulic tank. Open-circuit hydraulics provide maximum cooling and filtering efficiency.


Cooling System

Large components provide superior engine cooling capacity. The hydraulic system includes a large vertical air-to-oil cooler with hydraulically driven fan. Hydraulic cooler is hinged and swings out for easy cleaning and maintenance.


ETM Diagnostic System

The ETM diagnostic system with text display, mounted in the operator's console, continuously monitors major data of engine, gearbox and hydraulic system. Fault messages are electronically stored and can be called up.


Hydropilot

The Komatsu Demag Hydropilot 3-circuit hydraulic system features a load limiting governor with oil summation delivery to the working circuits and integral pressure cutoff.


Cab

Cab

Fully adjustable weight-compensating seat with vibration-dampening and adjustable armrests. Foldaway auxiliary seat. Two levers control digging and swing functions. Foot pedals control all crawler motions, clam, and swing brake. External FOPS guard, air conditioner, heater/defogger, sound suppression, radio, sun visor, windshield wiper/wash, ear. Cab is rubber-mounted to reduce noise and vibration.


Equipment

Boom/Stick

Rigid box-section boom and stick offer exceptional service life for heavy-duty mining conditions. Large radius castings reinforce high stress areas. Oversized hydraulic cylinders provide heavy-duty performance and feature automatic lubricated bearings. Structural steel buckets with optional wear packages incorporate either Bofors or ESCO lips, mechanical shrouds, and tooth systems designed for various digging conditions.


Superstructure

Heavy-duty castings provide superior durability in high stress areas. Designed for excellent accessibility to major components for maintenance. Counterweight: 88,000 lb 40 t.


Optional Equipment/Accessories

Additional lights, 200 W Alternator, 225 A Aquadigger configuration: various boom/stick lengths, various bucket capacities Auto deceleration Bofors teeth Bucket, coal Bucket, HD Bucket wear packages ECS Monitoring System Electric cable drum Fire suppression systems (Ansul) Kim Hot Start Generator, auxiliary Shoes: 59" 1500 mm Special paint scheme Sun blinds (for cab side windows) Track support rails.
