SK 85 MSRN 3 Kobelco excavator specs & Dimensions (2013 - 2019)

Kobelco SK 85 MSRN 3 is a Crawler Excavator manufactured from 2013 to 2019. It has a weight of 8.27 tons and a track width of 450 …

Kobelco SK 85 MSRN 3 is a Crawler Excavator manufactured from 2013 to 2019. It has a weight of 8.27 tons and a track width of 450 mm. The transport dimensions are 6.76 meters in length, 2.25 meters in width, and 2.55 meters in height. The excavator features a tear-out force of 37.1 kN, a dredging depth of 4.46 meters, and a maximum horizontal reach of 7.5 meters. The bucket width is 0.75 meters with a capacity of 0.28 cubic meters. Special equipment includes air conditioning, a blade, and an overload alert system.

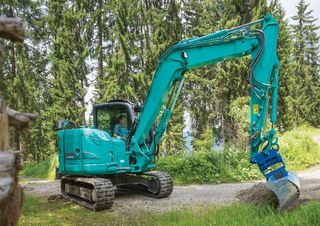

Crawler Excavators Kobelco SK 85 MSRN 3
Crawler Excavators Kobelco SK 85 MSRN 3
Crawler Excavators Kobelco SK 85 MSRN 3
Crawler Excavators Kobelco SK 85 MSRN 3
Crawler Excavators Kobelco SK 85 MSRN 3
Crawler Excavators Kobelco SK 85 MSRN 3
Crawler Excavators Kobelco SK 85 MSRN 3
Crawler Excavators Kobelco SK 85 MSRN 3
Crawler Excavators Kobelco SK 85 MSRN 3
Crawler Excavators Kobelco SK 85 MSRN 3
Crawler Excavators Kobelco SK 85 MSRN 3
Crawler Excavators Kobelco SK 85 MSRN 3

Visit Kobelco live at

Technical specs - SK 85 MSRN 3 Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.27 t
Transport length
6.76 m
Transport width
2.25 m
Transport height
2.55 m
Bucket capacity
0.28 m³
Track width
450 mm
Boom
MB
Max. Reach horizontal
7.5 m
Dredging depth
4.46 m
Tear-out force
37.1 kN
Bucket width
0.75 m
Engine manuf.
Isuzu
Engine type
AP 4 LE 2X
Engine power
42 kW
Displacement
2.179 l
Revolutions at max torque
1800 rpm
Max. torque
211 Nm
No. of cylinders
4
Cylinder bore x stroke
85x96 mm
Emission level
Tier 4 Final

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kobelco SK 85 MSRN 3 FAQ

When was the Kobelco SK 85 MSRN 3 manufactured?

The Kobelco SK 85 MSRN 3 was manufactured from 2013 to 2019.

How much does the Kobelco SK 85 MSRN 3 weigh?

The Kobelco SK 85 MSRN 3 weighs 8.27 tons.

What are the transport dimensions of the Kobelco SK 85 MSRN 3?

The Kobelco SK 85 MSRN 3 has a transport length of 6.76 meters, a transport width of 2.25 meters, and a transport height of 2.55 meters.

What is the track width of the Kobelco SK 85 MSRN 3's undercarriage?

The Kobelco SK 85 MSRN 3 has a track width of 450 mm.

What are the excavation performance specifications of the Kobelco SK 85 MSRN 3?

The Kobelco SK 85 MSRN 3 has a dredging depth of 4.46 meters, a maximum horizontal reach of 7.5 meters, and features a monobloc boom.

What is the tear-out force of the Kobelco SK 85 MSRN 3?

The Kobelco SK 85 MSRN 3 has a tear-out force of 37.1 kN.

What are the bucket specifications of the Kobelco SK 85 MSRN 3 excavator?

The Kobelco SK 85 MSRN 3 has a bucket capacity of 0.28 cubic meters and a bucket width of 0.75 meters.

How much is a Kobelco SK 85 MSRN 3 Crawler excavator (2013u20132019) worth?

The residual value of the Kobelco SK 85 MSRN 3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
