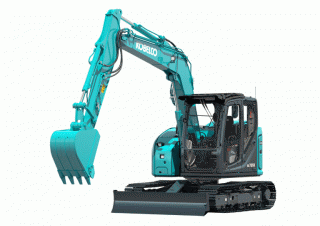

SK 75 SRN 7 Kobelco excavator specs & Dimensions (2019 - 2026)

Kobelco SK 75 SRN 7 is a crawler excavator manufactured since 2019. It has a weight of 7.98 tons and a track width of 450 mm. The …

Kobelco SK 75 SRN 7 is a crawler excavator manufactured since 2019. It has a weight of 7.98 tons and a track width of 450 mm. The transport dimensions are 6.56 meters in length, 2.15 meters in width, and 2.57 meters in height. The machine features a tear-out force of 39.4 kN, a dredging depth of 4.58 meters, and a maximum horizontal reach of 6.88 meters. The bucket width is 0.75 meters with a capacity of 0.28 cubic meters. Special equipment includes air conditioning, a blade, a diesel particulate filter, an overload alert, and a hydraulic quick hitch.

Crawler Excavators Kobelco SK 75 SRN 7

Visit Kobelco live at

Technical specs - SK 75 SRN 7 Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.98 t
Transport length
6.56 m
Transport width
2.15 m
Transport height
2.57 m
Bucket capacity
0.28 m³
Track width
450 mm
Boom
MB
Max. Reach horizontal
6.88 m
Dredging depth
4.58 m
Tear-out force
60.2 kN
Bucket width
0.75 m
Model series
SR
Engine manuf.
Yanmar
Engine type
4TNV98CT
Engine power
53.7 kW
Displacement
3.318 l
Revolutions at max torque
1365 rpm
Max. torque
296 Nm
No. of cylinders
4
Cylinder bore x stroke
98x110 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Kobelco SK 75 SRN 7 FAQ

When was the Kobelco SK 75 SRN 7 manufactured?

The Kobelco SK 75 SRN 7 was first produced in 2019.

How much does the Kobelco SK 75 SRN 7 weigh?

The Kobelco SK 75 SRN 7 weighs 7.98 tons.

What are the transport dimensions of the Kobelco SK 75 SRN 7?

The Kobelco SK 75 SRN 7 has a transport length of 6.56 meters, a transport width of 2.15 meters, and a transport height of 2.57 meters.

What is the fuel consumption of the Kobelco SK 75 SRN 7 crawler excavator?

The Kobelco SK 75 SRN 7 has a fuel consumption range of 3.6 to 9.9 liters per hour, with an average fuel consumption of 6.4 liters per hour.

What is the track width of the Kobelco SK 75 SRN 7's undercarriage?

The Kobelco SK 75 SRN 7 has a track width of 450 mm.

What are the excavation performance specifications of the Kobelco SK 75 SRN 7?

The Kobelco SK 75 SRN 7 has a dredging depth of 4.58 meters, a maximum horizontal reach of 6.88 meters, and features a monobloc boom.

What is the tear-out force of the Kobelco SK 75 SRN 7?

The Kobelco SK 75 SRN 7 has a tear-out force of 39.4 kN.

What are the specifications of the primary work tool bucket on the Kobelco SK 75 SRN 7?

The primary work tool bucket of the Kobelco SK 75 SRN 7 has a capacity of 0.28 cubic meters and a width of 0.75 meters.

How much is a Kobelco SK 75 SRN 7 Crawler excavator (2019u20132025) worth?

The residual value of the Kobelco SK 75 SRN 7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
