SK 460 8 Kobelco excavator specs & Dimensions (2021 - 2026)

Kobelco SK 460 8 is a Crawler Excavator manufactured since 2021. It has a weight of 49.4 tons and a track width of 600 mm. The tra…

Kobelco SK 460 8 is a Crawler Excavator manufactured since 2021. It has a weight of 49.4 tons and a track width of 600 mm. The transport dimensions are 5.11 meters in length, 3.55 meters in width, and 4.41 meters in height. The excavator features a tear-out force of 288 kN, a dredging depth of 9.26 meters, and a maximum horizontal reach of 12 meters. The bucket width is 1.99 meters, with a capacity ranging from 1.35 m³ to 3.4 m³. It is equipped with air conditioning.

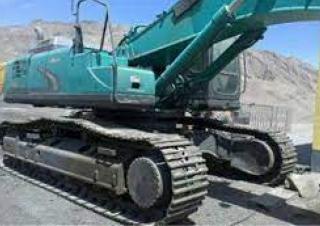

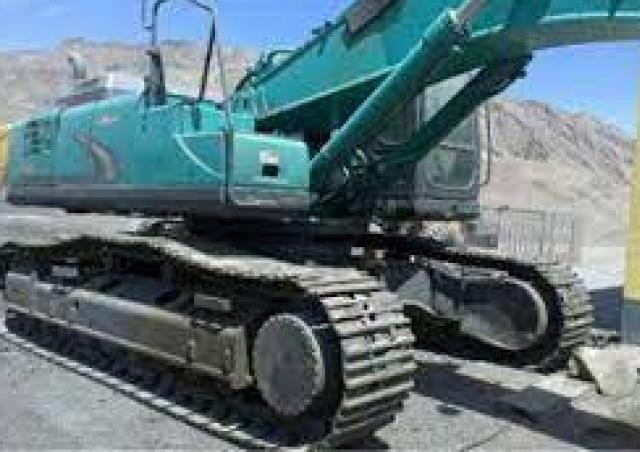

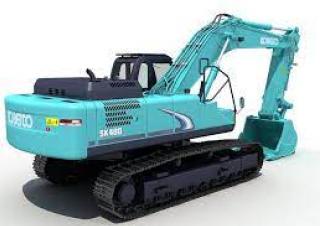

Crawler Excavators Kobelco SK 460 8
Crawler Excavators Kobelco SK 460 8
Crawler Excavators Kobelco SK 460 8
Crawler Excavators Kobelco SK 460 8

Visit Kobelco live at

Technical specs - SK 460 8 Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
49.4 t
Transport length
5.11 m
Transport width
3.55 m
Transport height
4.41 m
Bucket capacity min.
1.35 m³
Bucket capacity max.
3.4 m³
Track width
600 mm
Max. Reach horizontal
12 m
Dredging depth
9.26 m
Tear-out force
288 kN
Bucket width
1.99 m
Model series
SK
Engine manuf.
Hino
Engine type
P11C
Engine power
257 kW
Displacement
10.52 l
Revolutions at max torque
1850 rpm
No. of cylinders
6
Cylinder bore x stroke
122x150 mm

More technical details, like: bucket capacity, undercarriage, boom, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kobelco SK 460 8 FAQ

When was the Kobelco SK 460 8 manufactured?

The Kobelco SK 460 8 was first produced in 2021.

How much does the Kobelco SK 460 8 weigh?

The Kobelco SK 460 8 weighs 49.4 tons.

What are the transport dimensions of the Kobelco SK 460 8?

The Kobelco SK 460 8 has a transport length of 5.11 meters, a transport width of 3.55 meters, and a transport height of 4.41 meters.

What is the track width of the Kobelco SK 460 8's undercarriage?

The Kobelco SK 460 8 has a track width of 600 mm.

What are the excavation performance specifications of the Kobelco SK 460 8?

The Kobelco SK 460 8 has a dredging depth of 9.26 meters and a maximum horizontal reach of 12 meters.

What is the tear-out force of the Kobelco SK 460 8?

The Kobelco SK 460 8 has a tear-out force of 288 kN.

What are the specifications of the primary work tool bucket on the Kobelco SK 460 8?

The Kobelco SK 460 8 has a bucket with a maximum capacity of 3.4 cubic meters, a minimum capacity of 1.35 cubic meters, and a width of 1.99 meters.

How much is a Kobelco SK 460 8 Crawler excavator (2021u20132025) worth?

The residual value of the Kobelco SK 460 8 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Kobelco SK 460 8 overview

Kobelco SK 460 8 features overview

Newly designed MCU

Vertical alignment and sealed cover gives better protection from water and dust. Integration via base plate boosts assembly quality. Reliable fixture to base plate.


Engine

Pursuing the “Three E’s”

The perfection of next-generation, network performance. Enhancement: Greater Performance Capacity. New hydraulic circuitry minimizes pressure loss. High-efficiency, electronically controlled Common Rail fuel injection engine. Powerful travel and arm/bucket digging force. Economy: Improved Cost Efficiency. Advanced power plant that reduces fuel consumption. Easy maintenance that reduces upkeep costs. High structural durability and reliability that retain machine value longer. Environment: Features That Go Easy on the Earth. Meets the latest exhaust emission standards. Auto Idle Stop as standard equipment. Noise reduction measures (with improvement of the sound quality) minimize noise and vibration at the source, ensuring quiet operation.


Auto Idle Stop Provided as Standard Equipment

This function saves fuel and cuts emissions by shutting down the engine automatically when the machine is on stand by. It also stops the hourmeter, which helps to retain the machine's asset value.


Automatic Acceleration/Deceleration Function Reduces Engine Speed

Engine speed is automatically reduced when the control lever is placed in neutral, effectively saving fuel and reducing noise and exhaust emissions. The engine quickly returns to full speed when the lever is moved out of neutral.


Low Noise Level and Mild Sound Quality

The electronically controlled common-rail engine has a fuel injection system that runs quietly. Also, the hydraulic pumps have been redesigned to produce a more harmonious sound during pressure relief. In short, the GEOSPEC series meets all requirements cited in latest EU stage II.


Hydraulic and electronic system

Emergency Acceleration (Dial) Permits Continued Operation in the Unlikely Event of Malfunction

If unexpected trouble is experienced with the ITCS mechatronic control system, the machine can still be operated using the emergency acceleration system. Display modes are also automatically relayed to an emergency system so that digging can continue temporarily until a service person arrives to repair the primary system.


Upper Structure

Enhanced Upper Carbody Strength

The structure of the lower portion of the upper frame has been reassessed and the undercover area has been minimized for further strength.
