SK 380 SRLC Kobelco excavator specs & Dimensions (2021 - 2023)

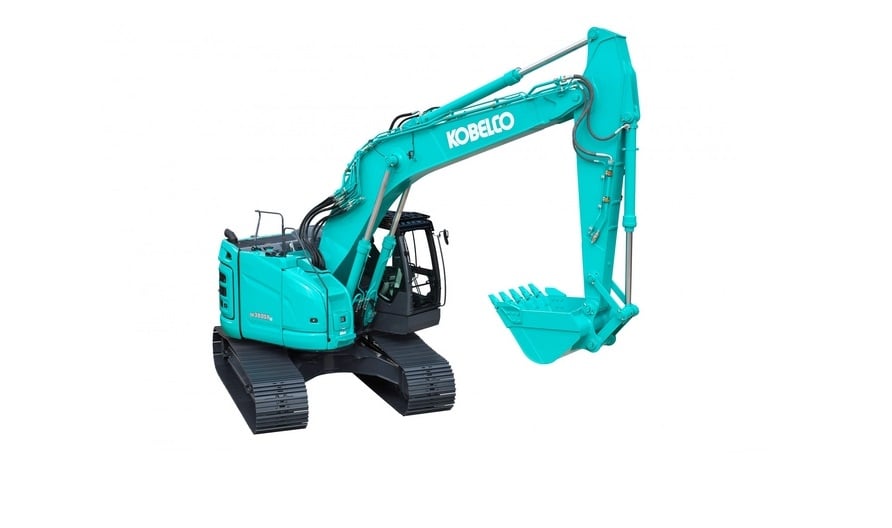

Kobelco SK 380 SRLC is a Crawler Excavator manufactured since 2021, with a weight of 36.8 tons. It features a track width of 600 m…

Kobelco SK 380 SRLC is a Crawler Excavator manufactured since 2021, with a weight of 36.8 tons. It features a track width of 600 mm, a transport length of 9.98 meters, a transport width of 3.19 meters, and a transport height of 3.53 meters. The excavator has a tear-out force of 139 kN, a dredging depth of 6.99 meters, and a maximum horizontal reach of 10.93 meters. It comes with a bucket width of 1.49 meters and a bucket capacity of 1.2 cubic meters. Special equipment includes air conditioning, a diesel particulate filter, an overload alert, and a hydraulic quick hitch.

Crawler Excavators Kobelco SK 380 SRLC
Crawler Excavators Kobelco SK 380 SRLC
Crawler Excavators Kobelco SK 380 SRLC
Crawler Excavators Kobelco SK 380 SRLC
Crawler Excavators Kobelco SK 380 SRLC
Crawler Excavators Kobelco SK 380 SRLC
Crawler Excavators Kobelco SK 380 SRLC
Crawler Excavators Kobelco SK 380 SRLC
Crawler Excavators Kobelco SK 380 SRLC
Crawler Excavators Kobelco SK 380 SRLC
Crawler Excavators Kobelco SK 380 SRLC
Crawler Excavators Kobelco SK 380 SRLC

Visit Kobelco live at

Technical specs - SK 380 SRLC Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
36.8 t
Transport length
9.98 m
Transport width
3.19 m
Transport height
3.53 m
Bucket capacity
1.2 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.93 m
Dredging depth
6.99 m
Tear-out force
139 kN
Bucket width
1.49 m
Model series
SK
Engine manuf.
Hino
Engine type
J 08 EYD-KSDS
Engine power
200 kW
Displacement
7.684 l
Revolutions at max torque
1600 rpm
Max. torque
1017 Nm
No. of cylinders
6
Cylinder bore x stroke
112x130 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Kobelco SK 380 SRLC FAQ

When was the Kobelco SK 380 SRLC manufactured?

The Kobelco SK 380 SRLC was first produced in 2021.

How much does the Kobelco SK 380 SRLC weigh?

The Kobelco SK 380 SRLC weighs 36.8 tons.

What are the transport dimensions of the Kobelco SK 380 SRLC crawler excavator?

The Kobelco SK 380 SRLC has a transport length of 9.98 meters, a transport width of 3.19 meters, and a transport height of 3.53 meters.

What is the fuel consumption range of the Kobelco SK 380 SRLC?

The fuel consumption range of the Kobelco SK 380 SRLC is 8.6 to 20.6 liters per hour.

What are the undercarriage specifications of the Kobelco SK 380 SRLC?

The Kobelco SK 380 SRLC has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Kobelco SK 380 SRLC?

The Kobelco SK 380 SRLC has a dredging depth of 6.99 meters, a maximum horizontal reach of 10.93 meters, and features a monobloc boom.

What is the power rating of the Kobelco SK 380 SRLC?

The source data does not provide power rating information for the Kobelco SK 380 SRLC.

What are the specifications of the primary work tool bucket on the Kobelco SK 380 SRLC?

The primary work tool bucket of the Kobelco SK 380 SRLC has a capacity of 1.2 cubic meters and a width of 1.49 meters.

How much is a Kobelco SK 380 SRLC Crawler excavator (2021u20132025) worth?

The residual value of the Kobelco SK 380 SRLC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Kobelco SK 380 SRLC overview

Kobelco SK 380 SRLC features overview

Performance X Design

SK380SRLC of KOBELCO has realised a completely new value by harmonising PERFORMANCE – greater efficiency and productivity with an increased power and speed and DESIGN – operator-based operability and comfort, refusing to accept any compromises. In pursuit of unique and matchless machines which are unforgettable once you use them, KOBELCO will continue to rise to meet every challenge.


Short radius design occupies only one lane of highway

In addition to excellent lifting and digging performance, the SK380SRLC has adopted the attachment mode for a variety of tasks such as breaking and operates effectively even in narrow spaces as a single highway lane. Moreover, the cab permits operators to concentrate on work in a wide and comfortable space.


Engine

Power Boost

When you need more power instantly, engage Power Boost to get 10% more power with no time limit.


KOBELCO engines comply with Stage V Final emissions regulations

Hino engines are renowned for fuel efficiency and environmental performance, and KOBELCO has tuned them specifically for construction machinery. The high-pressure common rail fuel injection system, the variable-geometry (VG) turbocharger, and the exhaust gas recirculation (EGR) system reduce particulate matter (PM) while the large EGR cooler greatly reduces the formation of Nitrogen Oxide (NOx) gases.


Multi-Display in Color

Brilliant colors and graphic displays are easy to recognize on the LCD multi-display in the console. The display shows fuel consumption, maintenance intervals, and more.


Hydraulic and electronic system

Heavy Lift

High hydraulic pressure (Heavy Lift) means greater lifting power, at close radius, allowing for smooth and steady operation while moving heavy objects.


Independent Travel

Automatic Independent Travel dedicates one hydraulic pump to travel and one to the attachment on a continuous basis, allowing for a smooth and constant movement speed even while swinging or using the boom or attachment. With Independent Travel, safely carrying a large pipe across a job site is a breeze.


One-touch attachment mode switch

A simple flick of switch converts the hydraulic circuit and flow amount to match attachments. Helpful icons let the operator confirm the proper configuration at a glance.


Upper Structure

Swing Priority

Our exclusive system automatically and instantly delivers full swing power during combined operations. There’s no need to switch modes to make quick work of jobs like side-digging and back-filling.


Cab

Lever angles allow for comfortable operations

The operator can move the levers horizontally without twisting their wrist, which reduces the fatigue caused by the operations.


Big Roomy Cab Interior

The cube design makes the most of straight lines, so the cab interior is more spacious. Operating space literally spreads out before the operator.


Super-Airtight Cab

The high level of airtightness ensures a quiet, comfortable cabin interior, and keeps dust out of the cab.


Safety on Full Display

Thanks to the cameras on the right, the operator inside the cab can confirm the safety of the worksite. The additional monitor makes it easy to confirm the situation. So, Safety can be confirmed with the left rear cab mirror and the right camera.
