JS370 LC JCB excavator specs & Dimensions (2015 - 2017)

JCB JS370 LC is a crawler excavator manufactured from 2015 to 2017. It has a weight of 36.69 tons and a track width of 600 mm. The…

JCB JS370 LC is a crawler excavator manufactured from 2015 to 2017. It has a weight of 36.69 tons and a track width of 600 mm. The transport dimensions are 11.25 meters in length, 3.2 meters in width, and 3.28 meters in height. The bucket capacity ranges from a minimum of 0.86 cubic meters to a maximum of 1.93 cubic meters.

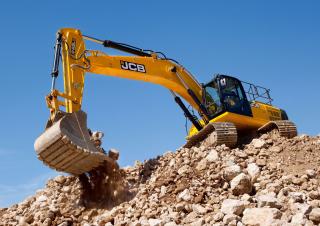

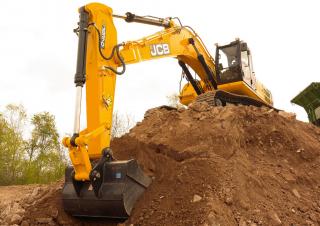

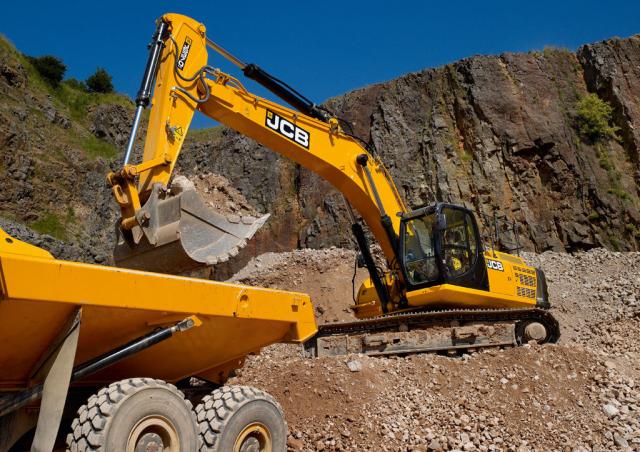

Crawler Excavators JCB JS370 LC
Crawler Excavators JCB JS370 LC
Crawler Excavators JCB JS370 LC
Crawler Excavators JCB JS370 LC
Crawler Excavators JCB JS370 LC
Crawler Excavators JCB JS370 LC

Visit JCB live at

Technical specs - JS370 LC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
36.69 t
Transport length
11.25 m
Transport width
3.2 m
Transport height
3.28 m
Bucket capacity
1.93 m³
Bucket capacity min.
0.86 m³
Bucket capacity max.
1.93 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
11.02 m
Dredging depth
7.27 m
Tear-out force
179.6 kN
Bucket width
1.8 m
Model series
JS
Engine manuf.
Isuzu
Engine type
6 HKIX
Engine power
210 kW
Displacement
7.8 l
Emission level
4i/3b

More technical details, like: dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS370 LC FAQ

When was the JCB JS370 LC manufactured?

The JCB JS370 LC was manufactured from 2015 to 2017.

How much does the JCB JS370 LC weigh?

The JCB JS370 LC weighs 36.69 tons.

What are the transport dimensions of the JCB JS370 LC crawler excavator?

The JCB JS370 LC has a transport length of 11.25 meters, a transport width of 3.2 meters, and a transport height of 3.28 meters.

What are the undercarriage specifications of the JCB JS370 LC?

The JCB JS370 LC has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the JCB JS370 LC?

The JCB JS370 LC has a dredging depth of 7.27 meters, a maximum horizontal reach of 11.02 meters, and features a monobloc boom.

What is the tear-out force of the JCB JS370 LC?

The JCB JS370 LC has a tear-out force of 179.6 kN.

What are the bucket specifications of the JCB JS370 LC crawler excavator?

The JCB JS370 LC crawler excavator has a bucket capacity ranging from 0.86 to 1.93 cubic meters, with a bucket width of 1.8 meters.

How much is a JCB JS370 LC Crawler excavator (2015u20132017) worth?

The residual value of the JCB JS370 LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
