JS360 NLC JCB excavator specs & Dimensions (2014 - 2017)

JCB JS360 NLC is a crawler excavator manufactured from 2014 to 2017, with a weight of 36.52 tons. It features a track width of 600…

JCB JS360 NLC is a crawler excavator manufactured from 2014 to 2017, with a weight of 36.52 tons. It features a track width of 600 mm, a transport length of 11.25 meters, a transport width of 2.99 meters, and a transport height of 3.28 meters. The machine has a tear-out force of 179.65 kN, a dredging depth of 7.27 meters, and a maximum horizontal reach of 11.02 meters.

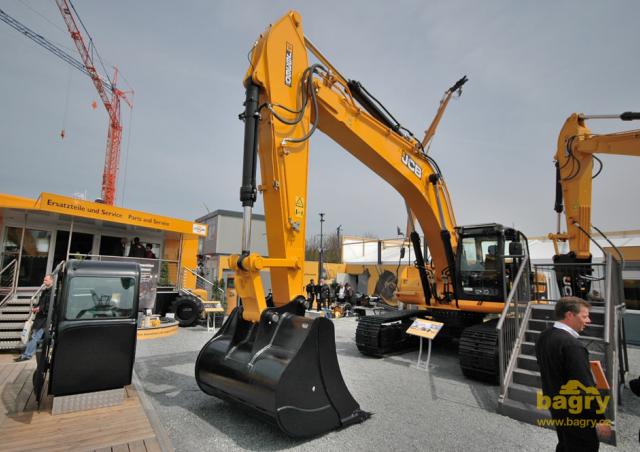

Crawler Excavators JCB JS360 NLC

Visit JCB live at

Technical specs - JS360 NLC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
36.52 t
Transport length
11.25 m
Transport width
2.99 m
Transport height
3.28 m
Bucket capacity
1.61 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
11.02 m
Dredging depth
7.27 m
Tear-out force
179.65 kN
Bucket width
1.6 m
Model series
JS
Engine manuf.
Isuzu
Engine type
AH 4 HK 1 XSA 03
Engine power
210 kW
Displacement
7.8 l
Emission level
Tier 4i/3b

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS360 NLC FAQ

When was the JCB JS360 NLC manufactured?

The JCB JS360 NLC was manufactured from 2014 to 2017.

How much does the JCB JS360 NLC weigh?

The JCB JS360 NLC weighs 36.52 tons.

What are the transport dimensions of the JCB JS360 NLC crawler excavator?

The JCB JS360 NLC has a transport length of 11.25 meters, a transport width of 2.99 meters, and a transport height of 3.28 meters.

What are the undercarriage specifications of the JCB JS360 NLC?

The JCB JS360 NLC has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the JCB JS360 NLC?

The JCB JS360 NLC has a dredging depth of 7.27 meters, a maximum horizontal reach of 11.02 meters, and is equipped with a Monobloc boom.

What is the power rating of the JCB JS360 NLC?

The source data does not provide power rating information for the JCB JS360 NLC.

What are the specifications of the primary work tool bucket on the JCB JS360 NLC?

The primary work tool bucket of the JCB JS360 NLC has a capacity of 1.61 cubic meters and a width of 1.6 meters.

How much is a JCB JS360 NLC Crawler excavator (2014u20132017) worth?

The residual value of the JCB JS360 NLC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
