JS330NLC JCB excavator specs & Dimensions (2017 - 2021)

JCB JS330NLC is a Crawler Excavator manufactured from 2017 to 2021, with a weight of 33.22 tons. It features a track width of 600 …

JCB JS330NLC is a Crawler Excavator manufactured from 2017 to 2021, with a weight of 33.22 tons. It features a track width of 600 mm, a transport length of 11.38 meters, a transport width of 2.99 meters, and a transport height of 3.62 meters. The machine has a tear-out force of 231 kN, a dredging depth of 6.28 meters, and a maximum horizontal reach of 9.88 meters. The bucket width is 1.8 meters, with a bucket capacity of 1.85 cubic meters. It is equipped with air conditioning.

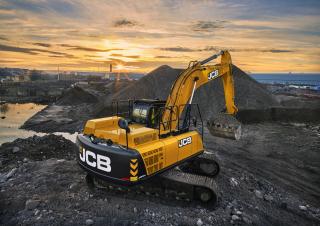

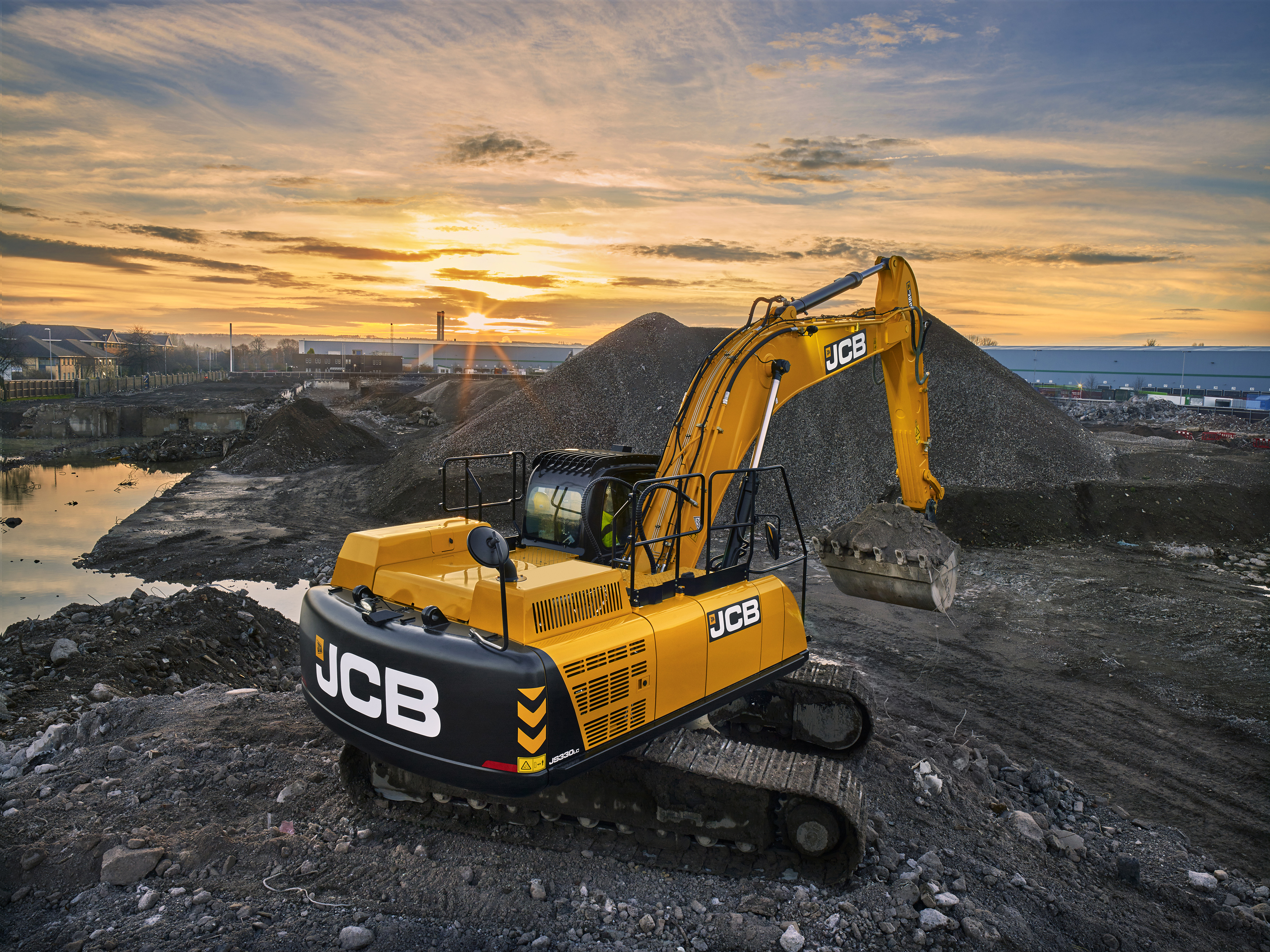

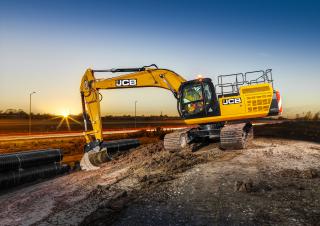

Crawler Excavators JCB JS330NLC
Crawler Excavators JCB JS330NLC
Crawler Excavators JCB JS330NLC
Crawler Excavators JCB JS330NLC
Crawler Excavators JCB JS330NLC
Crawler Excavators JCB JS330NLC
Crawler Excavators JCB JS330NLC
Crawler Excavators JCB JS330NLC
Crawler Excavators JCB JS330NLC
Crawler Excavators JCB JS330NLC

Visit JCB live at

Technical specs - JS330NLC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
33.22 t
Transport length
11.38 m
Transport width
2.99 m
Transport height
3.62 m
Bucket capacity
1.85 m³
Undercarriage
NLC
Track width
600 mm
Boom
VA
Max. Reach horizontal
9.88 m
Dredging depth
6.28 m
Tear-out force
231 kN
Bucket width
1.8 m
Model series
JS
Engine manuf.
MTU
Engine type
6 R 1000
Engine power
210 kW
Displacement
7.7 l
No. of cylinders
6
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS330NLC FAQ

When was the JCB JS330NLC manufactured?

The JCB JS330NLC was manufactured from 2017 to 2021.

How much does the JCB JS330NLC weigh?

The JCB JS330NLC weighs 33.22 tons.

What are the transport dimensions of the JCB JS330NLC crawler excavator?

The JCB JS330NLC has a transport length of 11.38 meters, a transport width of 2.99 meters, and a transport height of 3.62 meters.

What are the undercarriage specifications of the JCB JS330NLC?

The JCB JS330NLC has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the JCB JS330NLC crawler excavator?

The JCB JS330NLC crawler excavator has a dredging depth of 6.28 meters, a maximum horizontal reach of 9.88 meters, and features an adjustable boom.

What is the tear-out force of the JCB JS330NLC?

The JCB JS330NLC has a tear-out force of 231 kN.

What are the specifications of the primary work tool on the JCB JS330NLC?

The primary work tool of the JCB JS330NLC has a bucket capacity of 1.85 cubic meters and a bucket width of 1.8 meters.

How much is a JCB JS330NLC Crawler excavator (2017u20132021) worth?

The residual value of the JCB JS330NLC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
