JS330LC LR JCB excavator specs & Dimensions (2017 - 2021)

JCB JS330LC LR is a Crawler Excavator manufactured from 2017 to 2021, with a weight of 33.36 tons. It features a track width of 60…

JCB JS330LC LR is a Crawler Excavator manufactured from 2017 to 2021, with a weight of 33.36 tons. It features a track width of 600 mm, a transport length of 11.38 meters, a transport width of 3.2 meters, and a transport height of 3.62 meters. The excavator has a tear-out force of 231 kN, a dredging depth of 6.28 meters, and a maximum horizontal reach of 9.88 meters. It is equipped with a bucket width of 0.7 meters and a bucket capacity of 0.42 cubic meters. The machine includes air conditioning as part of its special equipment.

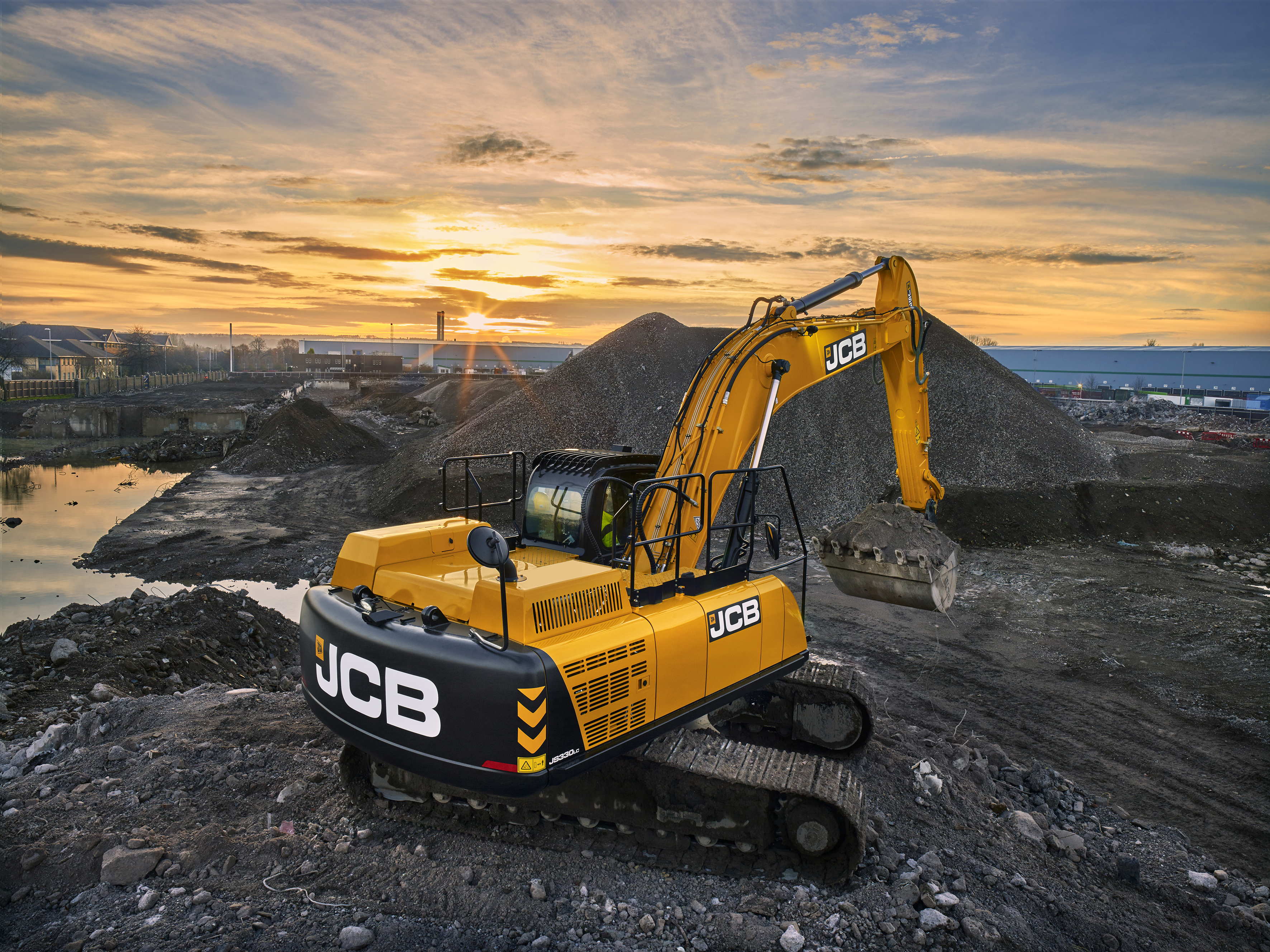

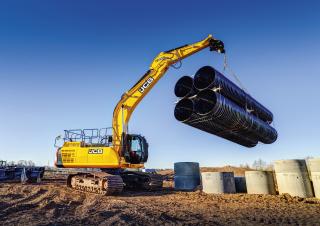

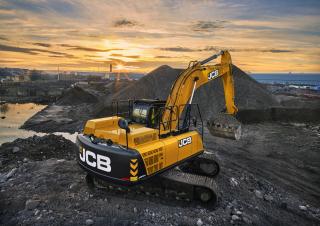

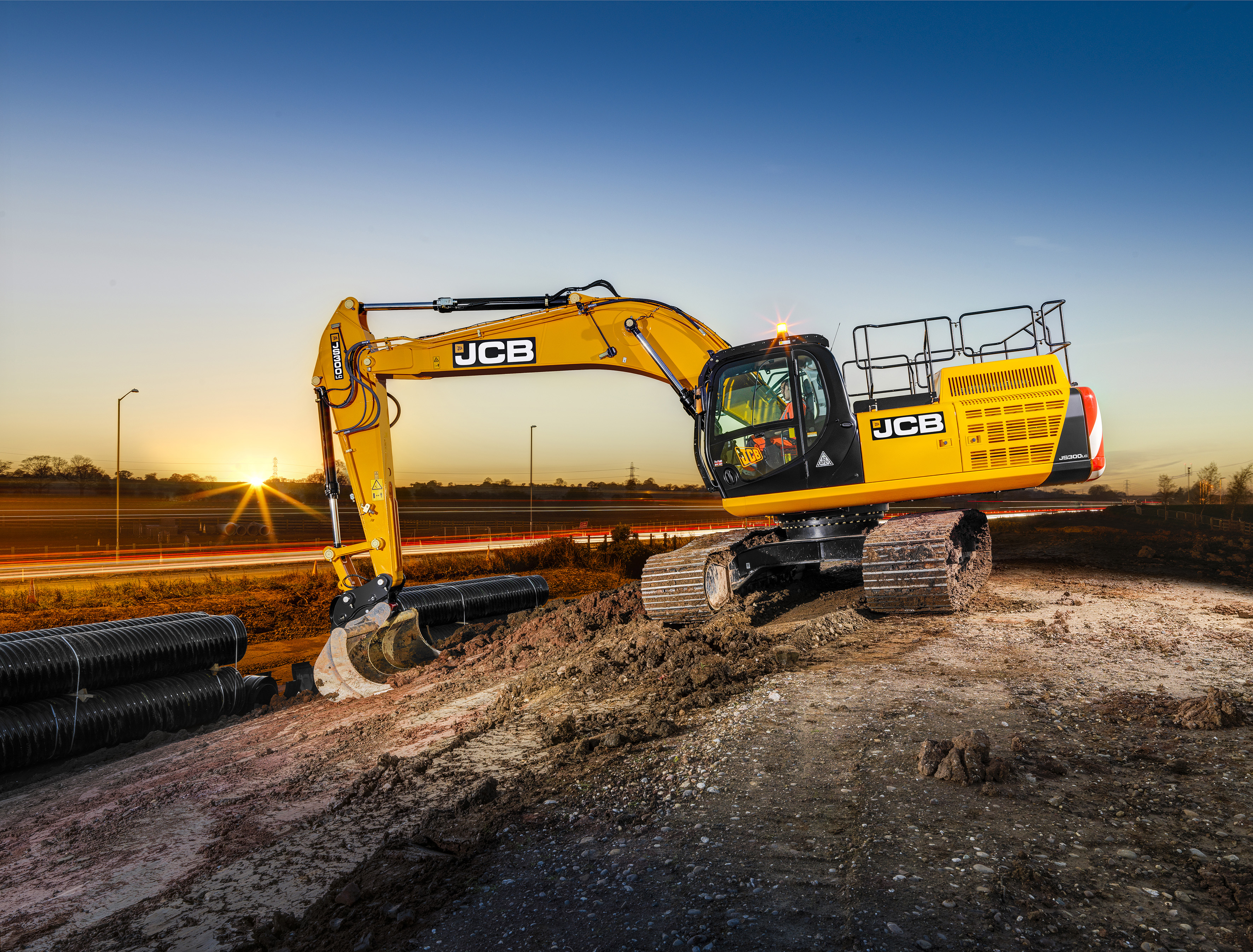

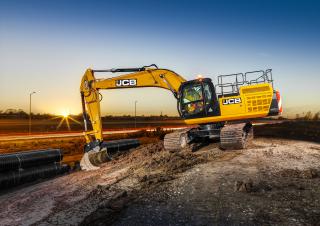

Crawler Excavators JCB JS330LC LR
Crawler Excavators JCB JS330LC LR
Crawler Excavators JCB JS330LC LR
Crawler Excavators JCB JS330LC LR
Crawler Excavators JCB JS330LC LR
Crawler Excavators JCB JS330LC LR
Crawler Excavators JCB JS330LC LR
Crawler Excavators JCB JS330LC LR
Crawler Excavators JCB JS330LC LR
Crawler Excavators JCB JS330LC LR

Visit JCB live at

Technical specs - JS330LC LR JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
33.36 t
Transport length
11.38 m
Transport width
3.2 m
Transport height
3.62 m
Bucket capacity
0.42 m³
Undercarriage
LC
Track width
600 mm
Max. Reach horizontal
9.88 m
Dredging depth
6.28 m
Tear-out force
231 kN
Bucket width
0.7 m
Model series
JS
Engine manuf.
MTU
Engine type
6 R 1000
Engine power
210 kW
Displacement
7.7 l
No. of cylinders
6
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., boom, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS330LC LR FAQ

When was the JCB JS330LC LR manufactured?

The JCB JS330LC LR was manufactured from 2017 to 2021.

How much does the JCB JS330LC LR weigh?

The JCB JS330LC LR weighs 33.36 tons.

What are the transport dimensions of the JCB JS330LC LR crawler excavator?

The JCB JS330LC LR has a transport length of 11.38 meters, a transport width of 3.2 meters, and a transport height of 3.62 meters.

What are the undercarriage specifications of the JCB JS330LC LR?

The JCB JS330LC LR has a long undercarriage and a track width of 600 mm.

What are the dredging depth and maximum horizontal reach of the JCB JS330LC LR?

The JCB JS330LC LR has a dredging depth of 6.28 meters and a maximum horizontal reach of 9.88 meters.

What is the power rating of the JCB JS330LC LR?

The power rating of the JCB JS330LC LR is not provided in the available data.

What are the specifications of the primary work tool bucket on the JCB JS330LC LR?

The primary work tool bucket of the JCB JS330LC LR has a capacity of 0.42 cubic meters and a width of 0.7 meters.

How much is a JCB JS330LC LR Crawler excavator (2017u20132021) worth?

The residual value of the JCB JS330LC LR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
