JS330 LC JCB excavator specs & Dimensions (2010 - 2017)

JCB JS330 LC is a crawler excavator manufactured from 2010 to 2017, with a weight of 32.229 tons. It features a track width of 600…

JCB JS330 LC is a crawler excavator manufactured from 2010 to 2017, with a weight of 32.229 tons. It features a track width of 600 mm, a transport length of 11.203 meters, a transport width of 3.2 meters, and a transport height of 3.61 meters. The machine has a tear-out force of 209.33 kN, a dredging depth of 6.3 meters, and a maximum horizontal reach of 10.17 meters.

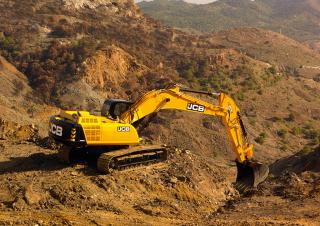

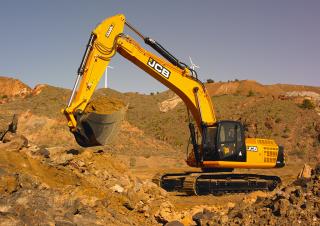

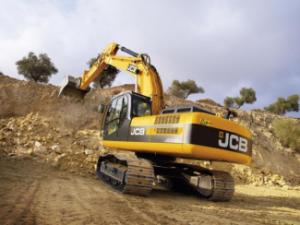

Crawler Excavators JCB JS330 LC
Crawler Excavators JCB JS330 LC
Crawler Excavators JCB JS330 LC
Crawler Excavators JCB JS330 LC
Crawler Excavators JCB JS330 LC
Crawler Excavators JCB JS330 LC
Crawler Excavators JCB JS330 LC
Crawler Excavators JCB JS330 LC

Visit JCB live at

Technical specs - JS330 LC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
32.229 t
Transport length
11.203 m
Transport width
3.2 m
Transport height
3.61 m
Bucket capacity
1.61 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.17 m
Dredging depth
6.3 m
Tear-out force
209.33 kN
Bucket width
1.6 m
Model series
JS
Engine manuf.
Isuzu
Engine type
6 HKIX
Engine power
210 kW
Displacement
7.8 l
Emission level
4i/3b

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS330 LC FAQ

When was the JCB JS330 LC manufactured?

The JCB JS330 LC was manufactured from 2010 to 2017.

How much does the JCB JS330 LC weigh?

The JCB JS330 LC weighs 32.23 tons.

What are the transport dimensions of the JCB JS330 LC crawler excavator?

The JCB JS330 LC crawler excavator has a transport length of 11.2 meters, a transport width of 3.2 meters, and a transport height of 3.61 meters.

What are the undercarriage specifications of the JCB JS330 LC?

The JCB JS330 LC has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the JCB JS330 LC?

The JCB JS330 LC has a dredging depth of 6.3 meters, a maximum horizontal reach of 10.17 meters, and features a monobloc boom.

What are the power ratings of the JCB JS330 LC?

The source data does not provide power rating information for the JCB JS330 LC.

What are the specifications of the primary work tool bucket on the JCB JS330 LC?

The primary work tool bucket of the JCB JS330 LC has a capacity of 1.61 cubic meters and a width of 1.6 meters.

How much is a JCB JS330 LC Crawler excavator (2010u20132017) worth?

The residual value of the JCB JS330 LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
