JS 460 JCB excavator specs & Dimensions (2001 - 2013)

Model rating
6,00 / 10

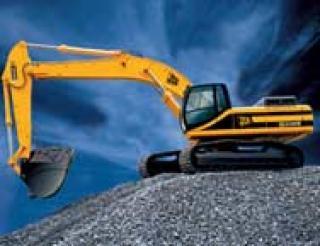

JCB JS 460 is a crawler excavator manufactured from 2001 to 2013, with a weight of 45.4 tons. It features a track width of 600 mm,…

JCB JS 460 is a crawler excavator manufactured from 2001 to 2013, with a weight of 45.4 tons. It features a track width of 600 mm, a transport length of 11.85 meters, and a transport width of 3.51 meters. The excavator is equipped with air conditioning.

Crawler Excavators JCB JS 460

Visit JCB live at

Technical specs - JS 460 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
45.4 t
Transport length
11.85 m
Transport width
3.51 m
Bucket capacity
2.5 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Model series
JS
Engine manuf.
Isuzu
Engine type
6 AB 1 GIT
Engine power
228 kW

More technical details, like: transport height, bucket capacity min., bucket capacity max., max. reach horizontal, dredging depth, tear-out force, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: transport height, bucket capacity min., bucket capacity max., max. reach horizontal, dredging depth, tear-out force, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS 460 FAQ

When was the JCB JS 460 manufactured?

The JCB JS 460 was manufactured from 2001 to 2013.

How much does the JCB JS 460 weigh?

The JCB JS 460 weighs 45.4 tons.

What are the transport dimensions of the JCB JS 460?

The JCB JS 460 has a transport length of 11.85 meters and a transport width of 3.51 meters.

What are the undercarriage specifications of the JCB JS 460?

The JCB JS 460 has a long undercarriage and a track width of 600 mm.

What type of boom does the JCB JS 460 have?

The JCB JS 460 has a Monobloc boom.

What is the bucket capacity of the JCB JS 460 crawler excavator?

The JCB JS 460 crawler excavator has a bucket capacity of 2.5 cubic meters.

How much is a JCB JS 460 Crawler excavator (2001u20132013) worth?

The residual value of the JCB JS 460 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
