JS 330 NL JCB excavator specs & Dimensions (2006 - 2010)

Model rating
7,00 / 10

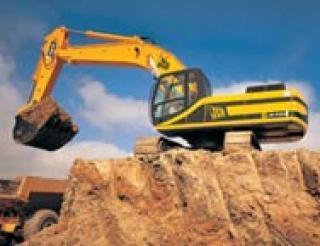

JCB JS 330 NL is a crawler excavator manufactured from 2006 to 2010, with a weight of 32.6 tons and a track width of 600 mm. It is equipped with air conditioning and a hydraulic quick hitch.

Crawler Excavators JCB JS 330 NL

Visit JCB live at

Technical specs - JS 330 NL JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
32.6 t
Bucket capacity
1.9 m³
Undercarriage
LC/NLC
Track width
600 mm
Boom
MB
Model series
JS
Engine manuf.
Isuzu
Engine type
6 HKIX
Engine power
202 kW

More technical details, like: transport length, transport width, transport height, bucket capacity min., bucket capacity max., max. reach horizontal, dredging depth, tear-out force, bucket width, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: transport length, transport width, transport height, bucket capacity min., bucket capacity max., max. reach horizontal, dredging depth, tear-out force, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS 330 NL FAQ

When was the JCB JS 330 NL manufactured?

The JCB JS 330 NL was manufactured from 2006 to 2010.

How much does the JCB JS 330 NL weigh?

The JCB JS 330 NL weighs 32.6 tons.

What are the undercarriage specifications of the JCB JS 330 NL?

The JCB JS 330 NL has a long, small undercarriage with a track width of 600 mm.

What type of boom does the JCB JS 330 NL have?

The JCB JS 330 NL has a Monobloc boom.

What is the bucket capacity of the JCB JS 330 NL excavator?

The JCB JS 330 NL excavator has a bucket capacity of 1.9 cubic meters.
