380 LC JCB excavator specs & Dimensions (2019 - 2026)

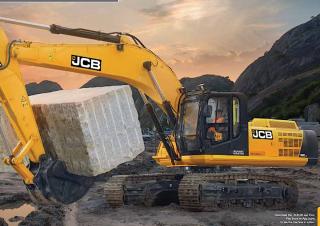

JCB 380 LC is a crawler excavator manufactured since 2019. It has a weight of 36.7 tons and a track width of 600 mm. The transport…

JCB 380 LC is a crawler excavator manufactured since 2019. It has a weight of 36.7 tons and a track width of 600 mm. The transport dimensions are 11.35 meters in length, 3.2 meters in width, and 3.51 meters in height. The dredging depth is 6.72 meters, with a maximum horizontal reach of 10 meters. The bucket capacity is 1.44 cubic meters.

Crawler Excavators JCB 380 LC

Visit JCB live at

Technical specs - 380 LC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
36.7 t
Transport length
11.35 m
Transport width
3.2 m
Transport height
3.51 m
Bucket capacity
1.44 m³
Track width
600 mm
Max. Reach horizontal
10 m
Dredging depth
6.72 m
Engine manuf.
JCB
Engine type
DieselMAX 672 TCAE
Engine power
212 kW
Displacement
7.2 l
Revolutions at max torque
1400 rpm
Max. torque
1150 Nm
No. of cylinders
6

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, model series, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 380 LC FAQ

When was the JCB 380 LC manufactured?

The JCB 380 LC was first produced in 2019.

How much does the JCB 380 LC weigh?

The JCB 380 LC weighs 36.7 tons.

What are the transport dimensions of the JCB 380 LC?

The JCB 380 LC has a transport length of 11.35 meters, a transport width of 3.2 meters, and a transport height of 3.51 meters.

What is the track width of the JCB 380 LC crawler excavator?

The JCB 380 LC crawler excavator has a track width of 600 mm.

What are the excavation performance specifications of the JCB 380 LC?

The JCB 380 LC has a dredging depth of 6.72 meters and a maximum horizontal reach of 10 meters.

What is the bucket capacity of the JCB 380 LC crawler excavator?

The bucket capacity of the JCB 380 LC is 1.44 cubic meters.

How much is a JCB 380 LC Crawler excavator (2019u20132025) worth?

The residual value of the JCB 380 LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
