ZX85US TYPE HE10 Hitachi excavator specs & Dimensions (2017 - 2026)

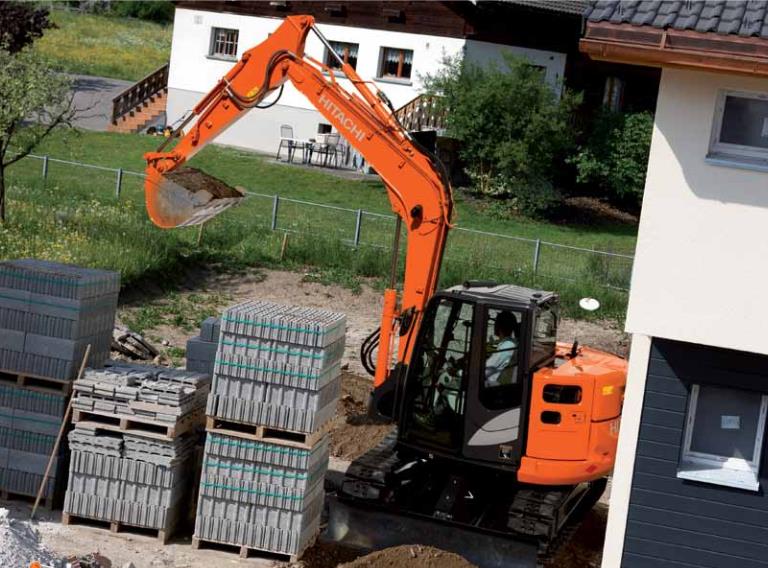

Hitachi ZX85US TYPE HE10 is a Crawler Excavator manufactured since 2017. It has a weight of 9.17 tons and a track width of 450 mm.…

Hitachi ZX85US TYPE HE10 is a Crawler Excavator manufactured since 2017. It has a weight of 9.17 tons and a track width of 450 mm. The transport dimensions are 8.1 meters in length, 2.32 meters in width, and 2.69 meters in height. The excavator features a tear-out force of 53 kN, a dredging depth of 7.65 meters, and a maximum horizontal reach of 10.17 meters. It is equipped with a bucket capacity of 0.28 cubic meters and includes special equipment such as air conditioning and a blade.

Crawler Excavators Hitachi ZX85US TYPE HE10
Crawler Excavators Hitachi ZX85US TYPE HE10
Crawler Excavators Hitachi ZX85US TYPE HE10
Crawler Excavators Hitachi ZX85US TYPE HE10

Visit Hitachi live at

Technical specs - ZX85US TYPE HE10 Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.17 t
Transport length
8.1 m
Transport width
2.32 m
Transport height
2.69 m
Bucket capacity
0.28 m³
Track width
450 mm
Max. Reach horizontal
10.17 m
Dredging depth
7.65 m
Tear-out force
53 kN
Model series
ZAXIS
Engine manuf.
Yanmar
Engine type
4TNV94L
Engine power
34.1 kW
Displacement
3.053 l
Revolutions at max torque
1000 rpm
Max. torque
204.1 Nm
No. of cylinders
4
Cylinder bore x stroke
94x110 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hitachi ZX85US TYPE HE10 FAQ

When was the Hitachi ZX85US TYPE HE10 manufactured?

The Hitachi ZX85US TYPE HE10 was first produced in 2017.

How much does the Hitachi ZX85US TYPE HE10 weigh?

The Hitachi ZX85US TYPE HE10 weighs 9.17 tons.

What are the transport dimensions of the Hitachi ZX85US TYPE HE10 crawler excavator?

The Hitachi ZX85US TYPE HE10 crawler excavator has a transport length of 8.1 meters, a transport width of 2.32 meters, and a transport height of 2.69 meters.

What is the track width of the Hitachi ZX85US TYPE HE10's undercarriage?

The Hitachi ZX85US TYPE HE10 has a track width of 450 mm.

What is the excavation performance of the Hitachi ZX85US TYPE HE10?

The Hitachi ZX85US TYPE HE10 has a dredging depth of 7.65 meters and a maximum horizontal reach of 10.17 meters.

What are the power ratings of the Hitachi ZX85US TYPE HE10?

There are no power rating specifications available for the Hitachi ZX85US TYPE HE10 in the provided data.

What is the bucket capacity of the Hitachi ZX85US TYPE HE10 excavator?

The bucket capacity of the Hitachi ZX85US TYPE HE10 excavator is 0.28 cubic meters.

How much is a Hitachi ZX85US TYPE HE10 Crawler excavator (2017u20132025) worth?

The residual value of the Hitachi ZX85US TYPE HE10 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
