ZX200-5G Hitachi excavator specs & Dimensions (2017 - 2026)

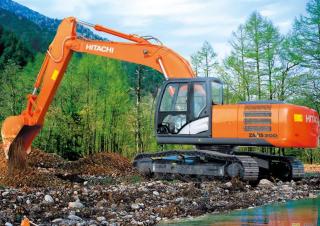

Hitachi ZX200-5G is a crawler excavator manufactured since 2017. It has a weight of 19 tons and a track width of 600 mm. The trans…

Hitachi ZX200-5G is a crawler excavator manufactured since 2017. It has a weight of 19 tons and a track width of 600 mm. The transport dimensions are 9 meters in length, 2 meters in width, and 3 meters in height. The machine features a tear-out force of 158 kN, a dredging depth of 6 meters, and a maximum horizontal reach of 9 meters. The bucket width is 1 meter. Special equipment includes air conditioning and an overload alert system.

Crawler Excavators Hitachi ZX200-5G
Crawler Excavators Hitachi ZX200-5G
Crawler Excavators Hitachi ZX200-5G
Crawler Excavators Hitachi ZX200-5G

Visit Hitachi live at

Technical specs - ZX200-5G Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19.8 t
Transport length
9.66 m
Transport width
2.86 m
Transport height
3.01 m
Bucket capacity
0.8 m³
Track width
600 mm
Max. Reach horizontal
9.75 m
Dredging depth
6.67 m
Tear-out force
158 kN
Bucket width
1.14 m
Model series
ZAXIS
Engine manuf.
Isuzu
Engine type
CC-6BG1T
Engine power
132 kW
Displacement
6.494 l
Revolutions at max torque
1800 rpm
Max. torque
637 Nm
No. of cylinders
6
Cylinder bore x stroke
105x125 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hitachi ZX200-5G FAQ

When was the Hitachi ZX200-5G manufactured?

The Hitachi ZX200-5G was first produced in 2017.

How much does the Hitachi ZX200-5G weigh?

The Hitachi ZX200-5G weighs 19.8 tons.

What are the transport dimensions of the Hitachi ZX200-5G crawler excavator?

The Hitachi ZX200-5G has a transport length of 9.66 meters, a transport width of 2.86 meters, and a transport height of 3.01 meters.

What is the track width of the Hitachi ZX200-5G's undercarriage?

The Hitachi ZX200-5G has a track width of 600 mm.

What are the dredging depth and maximum horizontal reach of the Hitachi ZX200-5G?

The Hitachi ZX200-5G has a dredging depth of 6.67 meters and a maximum horizontal reach of 9.75 meters.

Are there any power ratings available for the Hitachi ZX200-5G?

No power rating data is available for the Hitachi ZX200-5G in the provided source data.

What are the bucket specifications of the Hitachi ZX200-5G excavator?

The Hitachi ZX200-5G excavator has a bucket capacity of 0.8 cubic meters and a bucket width of 1.14 meters.

How much is a Hitachi ZX200-5G Crawler excavator (2017u20132025) worth?

The residual value of the Hitachi ZX200-5G depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
